Air Lift 1000 Universal Air Spring Kit

60915_v0
60915_v0
Part Number: 60915
  • Up to 1,000 lbs. of load-leveling capacity*
  • Eliminates squat, trailer sway, rough ride and bottoming out
  • Find your kit here

Ensure you are purchasing the correct kit by measuring your coil springs and referencing this chart.

Product Overview

Can’t find an air spring kit for a coil-sprung vehicle? Air Lift 1000 Universal Air Spring Kits fit almost any open coil spring to provide up to 1,000 lbs. of load-leveling support*. Just take two simple measurements and use this chart to find the correct kit for your application.

Tow and Haul with Safety & Comfort

Air Lift adjustable air springs work with your existing suspension to give your vehicle more leveling support when you need it, so your vehicle is always level and stable. Proper weight distribution to all tires means more safety and a more comfortable ride as well. This results in:

Improved braking and steering: when all four tires are firmly on the ground, braking time and steering are both improved

Less sway: Air springs increase spring rate and vastly improve vehicle stability

Less bottoming out: Air springs provide adjustable load support to help prevent bottoming out on rough roads

Headlight aim: Only level and stable vehicles provide safe and proper headlight aiming

Less porpoising: Even vehicles which don’t squat when loaded can begin to “porpoise” vertically when towing heavy trailers. Adjustable air springs dramatically reduce this problem for a safer, more comfortable ride

More even tire wear: when weight is evenly distributed to all four tires, tires wear more evenly

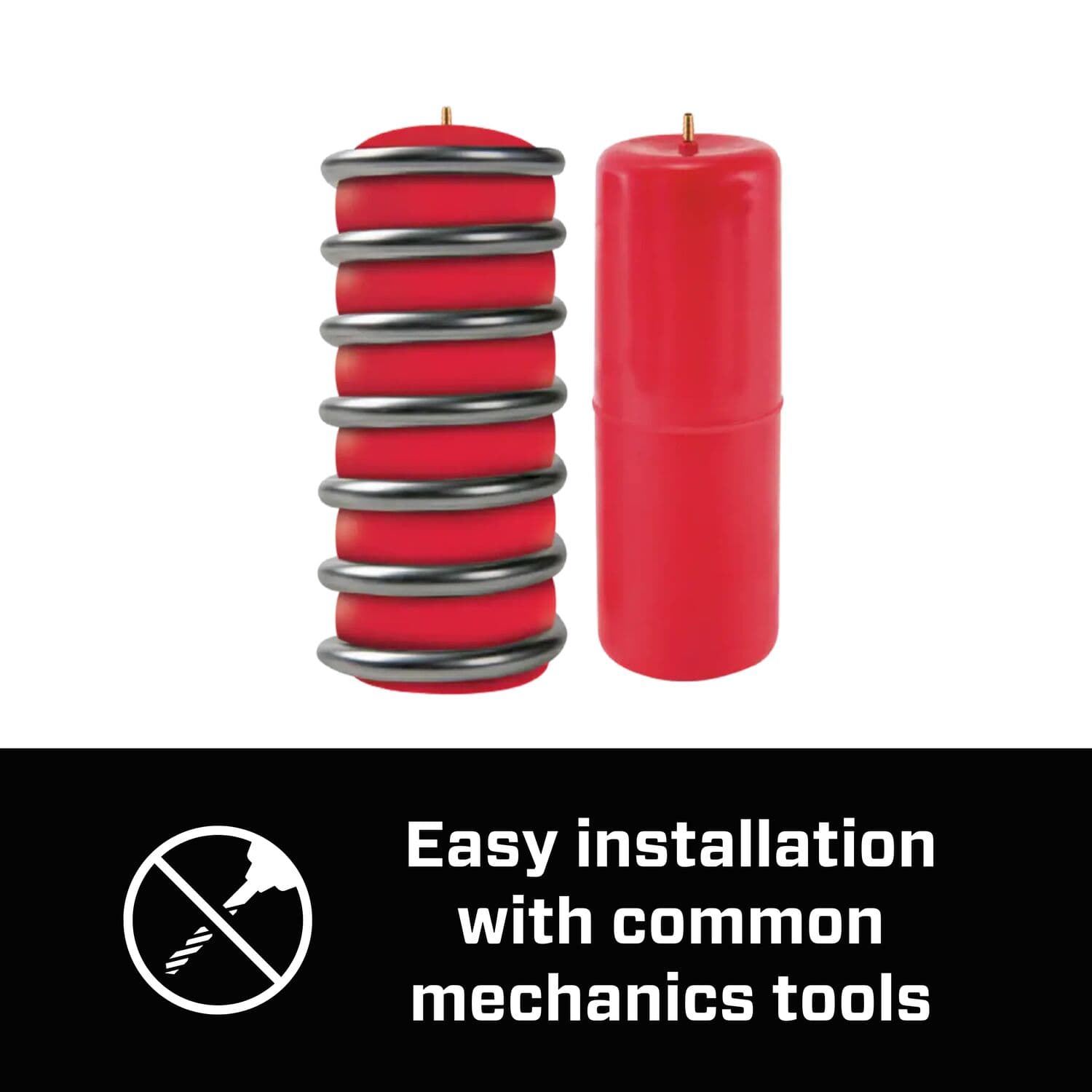

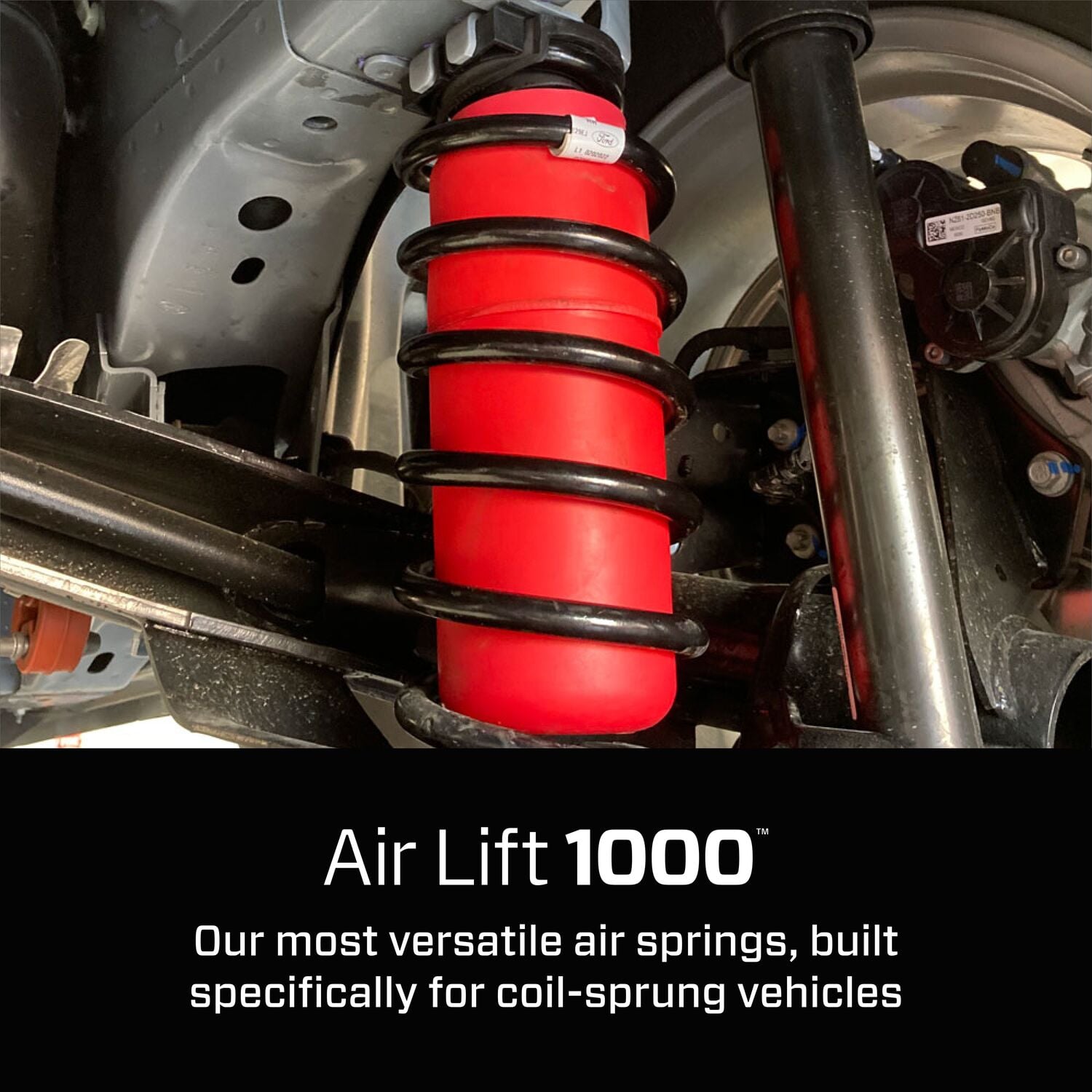

Air Lift 1000 adjustable air springs fit easily inside your coil springs to provide suspension support. To operate, just add air to the air springs if you are carrying a heavy load to ensure that your vehicle remains level and stable. Then, deflate when riding empty.

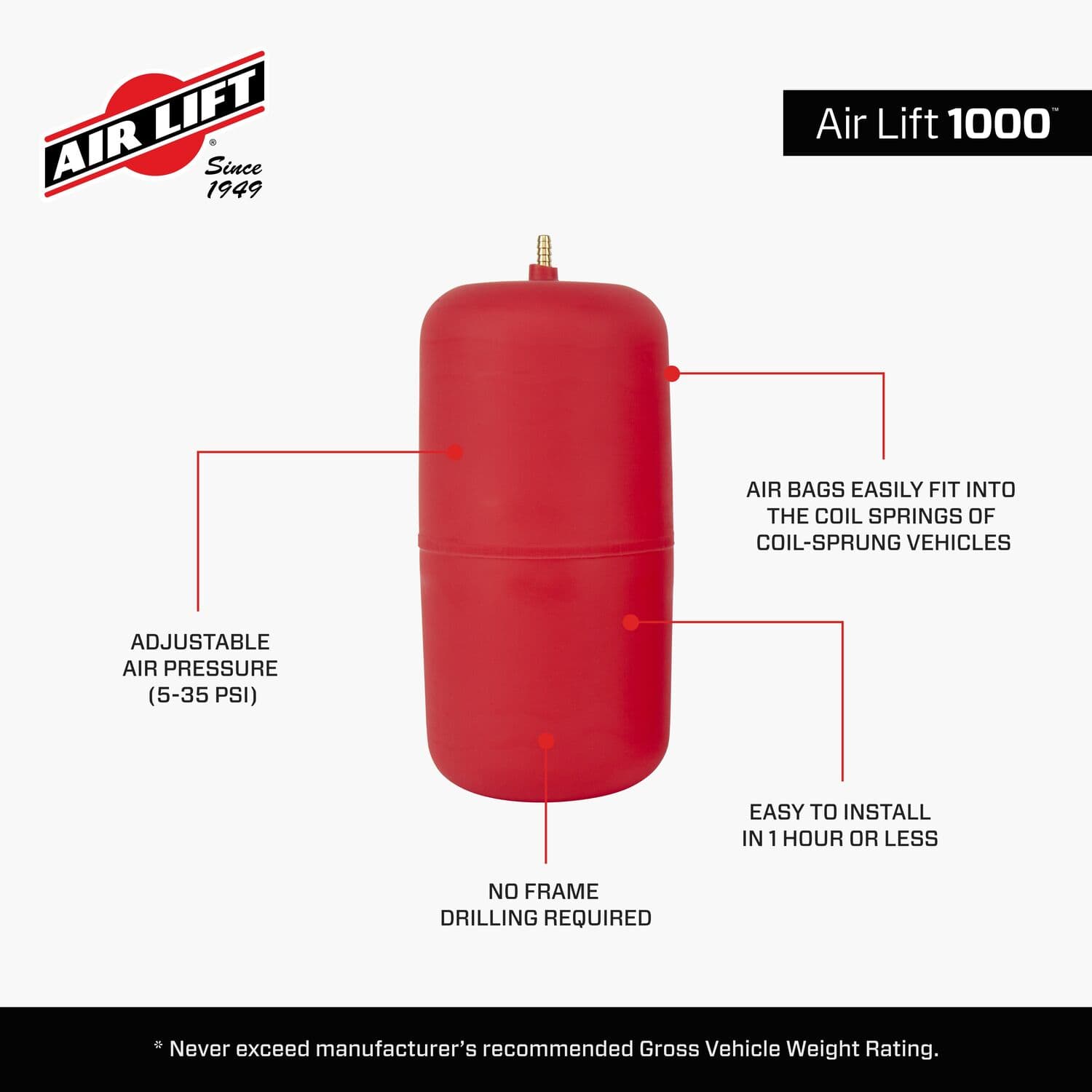

Air spring pressure is controlled through air line tubing that connects to the most convenient spot on your vehicle’s chassis. Our air springs are fully adjustable 5-35 PSI for most applications, and up to 50 or 90 PSI for some motorhome applications.

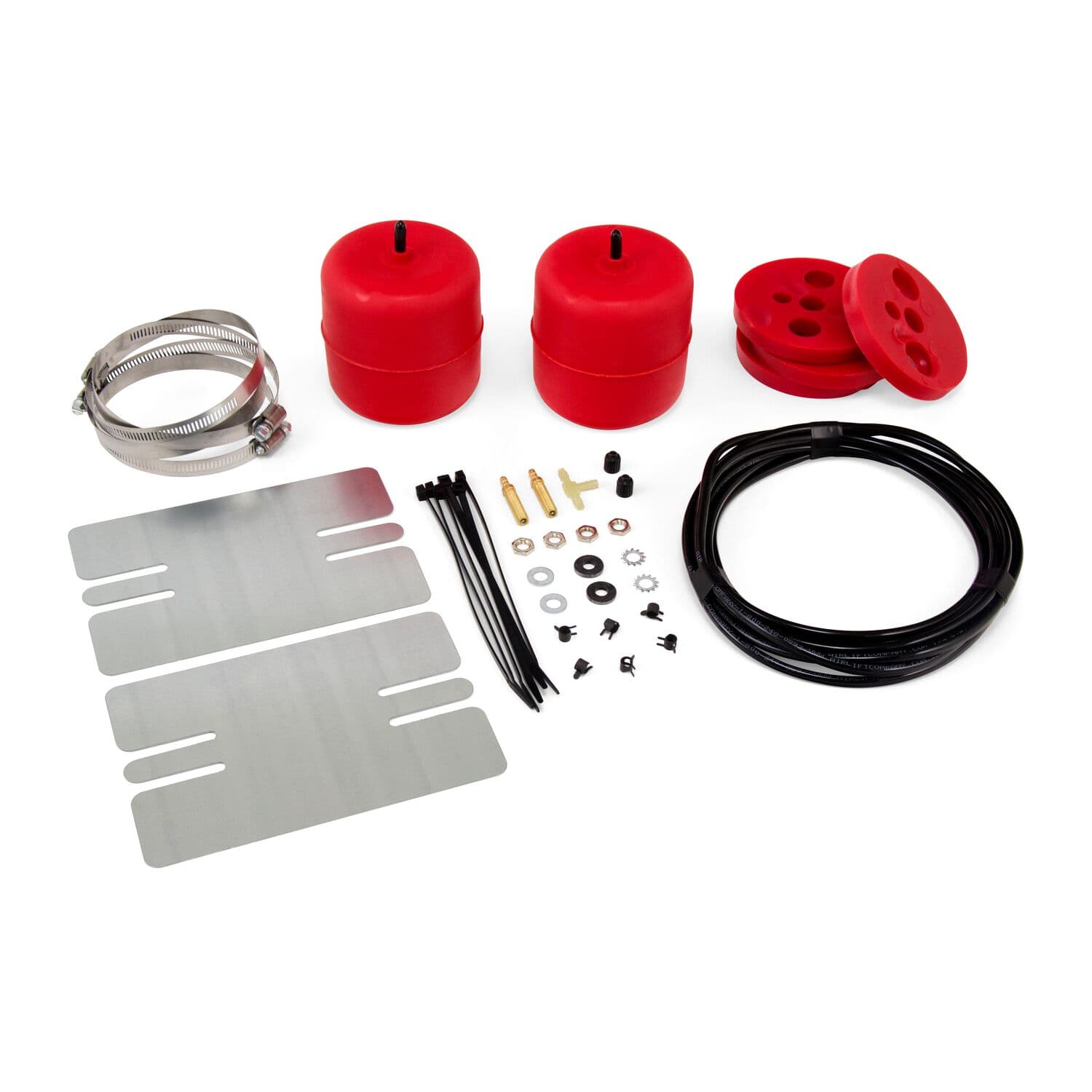

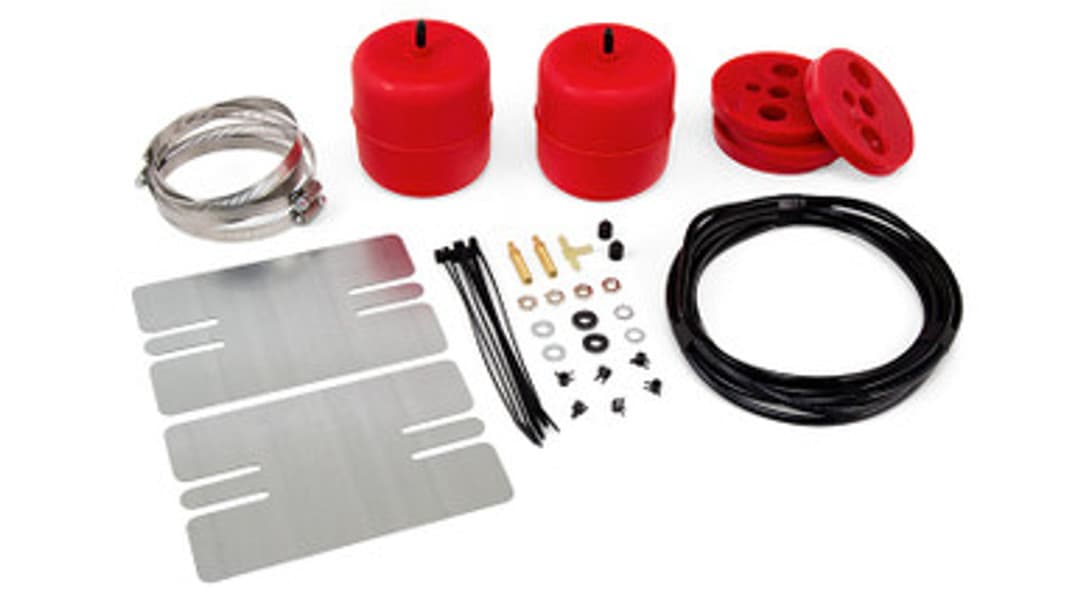

The kit also includes 2 air springs, air lines, Schrader valve and all of the hardware you need for installation. You can install them yourself or one of our installers throughout the US and Canada can install the kit for you.

Add an Air Lift On-Board Air Compressor System for increased convenience

Air Lift 1000 air springs can be easily inflated and deflated on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

Air Lift air spring kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

Technical Specifications

Additional Information

Shipping Weight 4 lbs
Shipping Box Dimensions 6.25 x 13 x 10.25 in
Installation Manual Download Installation Manual
Warranty

Lifetime Limited
