Select your vehicle to see if this part fits:

Air Lift 1000

60789_v0
60789_v0
Part Number: 60789
  • Up to 1,000 lbs. of load-leveling capacity*
  • Eliminates squat, trailer sway, rough ride and bottoming out
  • Fits many coil-sprung vehicles

Product Overview

Air Lift 1000 air spring kits fit popular coil sprung vehicles, including SUVs, CUVs, vans, cars, motorhomes and some 1/2, 3/4 and 1 ton pickups. Air Lift 1000 air springs provide up to 1000 pounds of leveling capacity*.

Tow and Haul with Safety & Comfort

Air Lift adjustable air springs work with your existing suspension to give your vehicle more leveling support when you need it, so your vehicle is always level and stable. Proper weight distribution to all tires means more safety and a more comfortable ride as well. This results in:

Improved braking and steering: when all four tires are firmly on the ground, braking time and steering are both improved

Less sway: Air springs increase spring rate and vastly improve vehicle stability

Less bottoming out: Air springs provide adjustable load support to help prevent bottoming out on rough roads

Headlight aim: Only level and stable vehicles provide safe and proper headlight aiming

Less porpoising: Even vehicles which don’t squat when loaded can begin to “porpoise” vertically when towing heavy trailers. Adjustable air springs dramatically reduce this problem for a safer, more comfortable ride

More even tire wear: when weight is evenly distributed to all four tires, tires wear more evenly

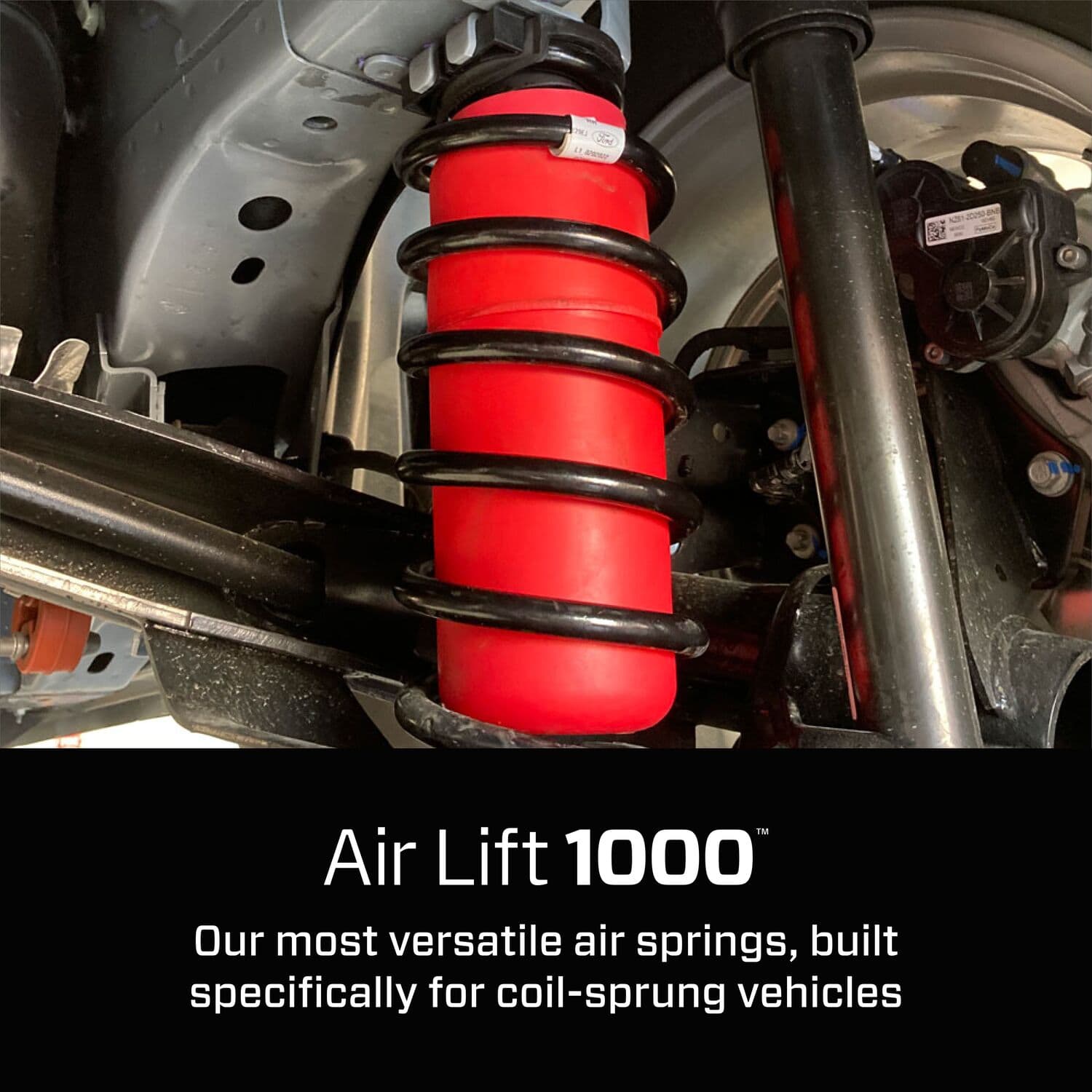

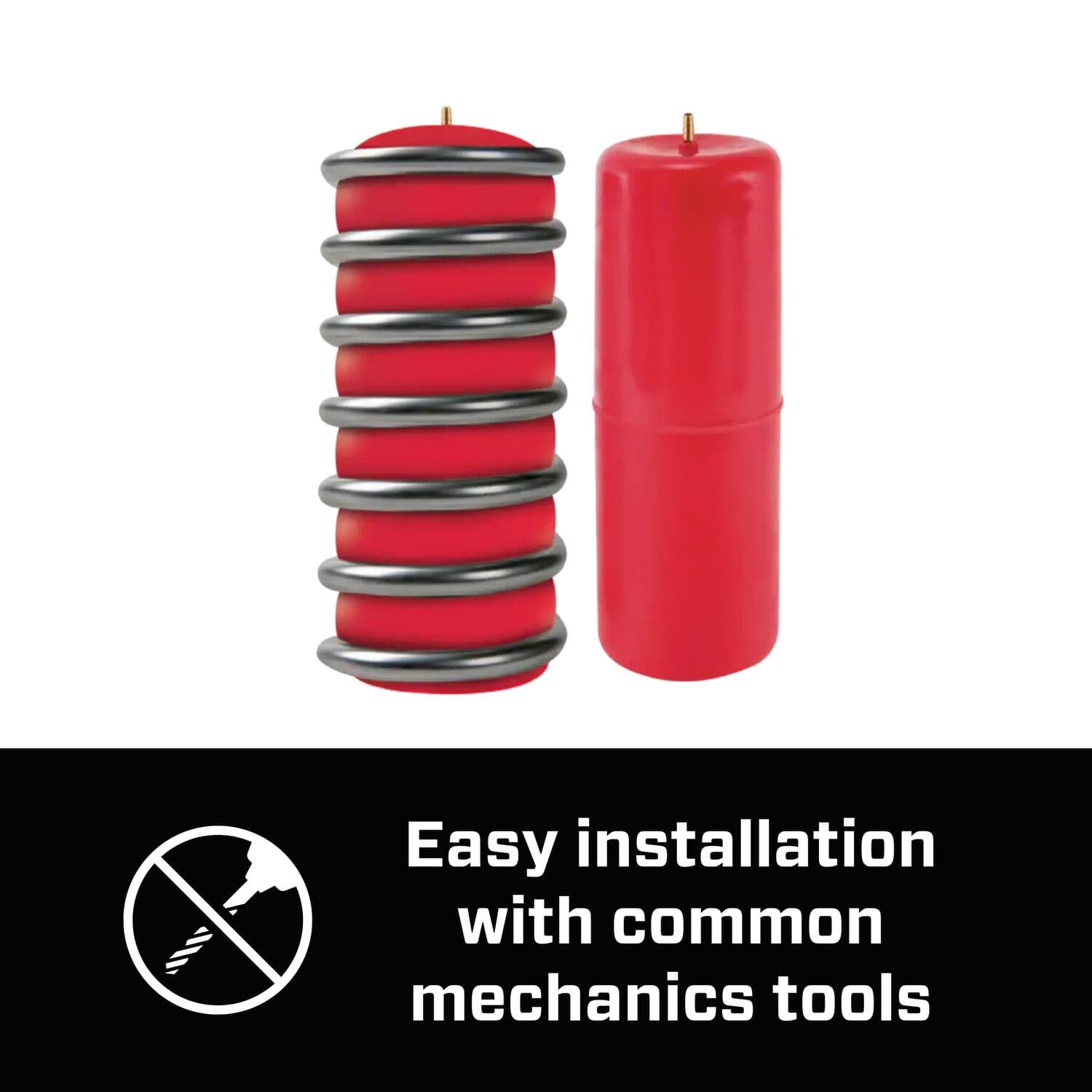

Air Lift 1000 adjustable air springs fit easily inside your coil springs to provide suspension support. To operate, just add air to the air springs if you are carrying a heavy load to ensure that your vehicle remains level and stable. Then, deflate when riding empty.

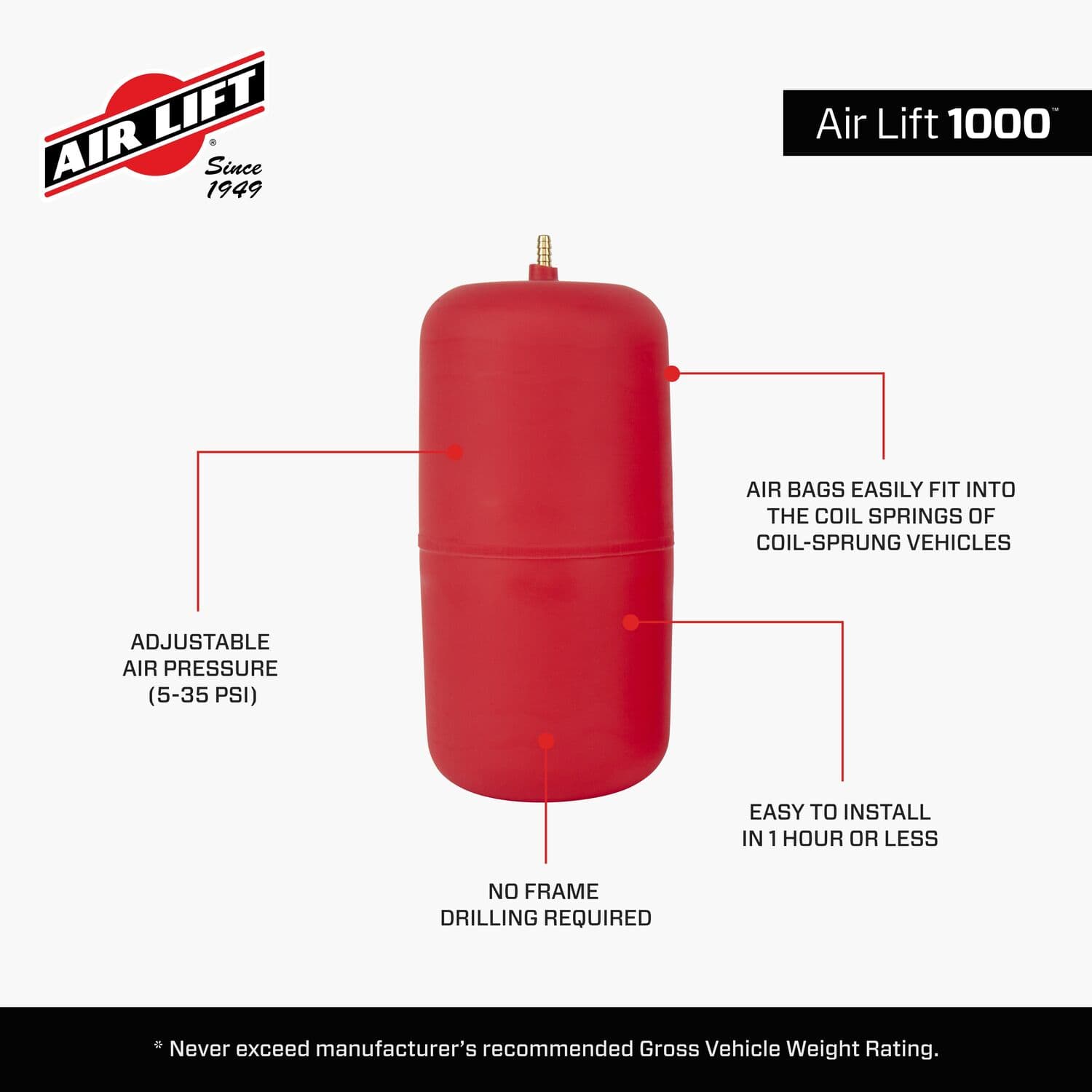

Air spring pressure is controlled through air line tubing that connects to the most convenient spot on your vehicle’s chassis. Our air springs are fully adjustable 5-35 PSI for most applications, and up to 50 or 90 PSI for some motorhome applications.

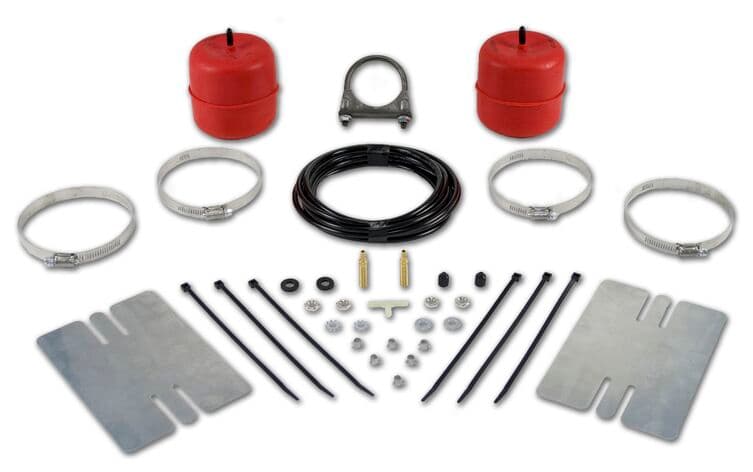

The kit also includes 2 air springs, air lines, Schrader valve and all of the hardware you need for installation. Air Lift 1000 air spring kits are engineered to be installed in under 2 hours and include a fully illustrated, user-friendly instruction manual. You can install them yourself or one of our installers throughout the US and Canada can install the kit for you.

Add an Air Lift On-Board Air Compressor System for increased convenience

Air Lift 1000 air springs can be easily inflated and deflated on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

Air Lift air spring kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

Additional Information

Shipping Weight 3 lbs
Shipping Box Dimensions 6.25 x 13 x 10.25 in
Installation Manual Download Installation Manual
Warranty

Lifetime Limited

Frame Drilling Required

No

Application Type

Rear Kit

Replacement Air Spring

60289

Product Videos

Videos

  • Why Air? Why Air Lift?

  • Air Lift 1000 Installation

  • On-Board Air Compressor Systems

Compatible Vehicles

This Part Is Compatible With These Vehicles

(Scroll horizontally to view all information within the table.)

YearMakeModelSub Model
1996BUICKSKYLARKCUSTOM
1996BUICKSKYLARKGRAN SPORT
1996BUICKSKYLARKLIMITED
1995BUICKSKYLARKCUSTOM
1995BUICKSKYLARKGRAN SPORT
1995BUICKSKYLARKLIMITED
1994BUICKSKYLARKCUSTOM
1994BUICKSKYLARKGRAN SPORT
1994BUICKSKYLARKLIMITED
1993BUICKSKYLARKCUSTOM
1993BUICKSKYLARKGRAN SPORT
1993BUICKSKYLARKLIMITED
1992BUICKSKYLARKBASE MODEL
1992BUICKSKYLARKGRAN SPORT
1991BUICKSKYLARKBASE MODEL
1991BUICKSKYLARKCUSTOM
1991BUICKSKYLARKGRAN SPORT
1991BUICKSKYLARKLUXURY EDITION
1990BUICKSKYLARKBASE MODEL
1990BUICKSKYLARKCUSTOM
1990BUICKSKYLARKGRAN SPORT
1990BUICKSKYLARKLUXURY EDITION
1989BUICKSKYLARKCUSTOM
1989BUICKSKYLARKLIMITED
1988BUICKSKYLARKCUSTOM
1988BUICKSKYLARKLIMITED
1985BUICKSKYLARKCUSTOM
1985BUICKSKYLARKLIMITED
1996CHEVROLETBERETTABASE MODEL
1996CHEVROLETBERETTAZ26
1996CHEVROLETCORSICA
1995CHEVROLETBERETTABASE MODEL
1995CHEVROLETBERETTAZ26
1995CHEVROLETCORSICA
1994CHEVROLETBERETTABASE MODEL
1994CHEVROLETBERETTAZ26
1994CHEVROLETCAVALIERRS
1994CHEVROLETCAVALIERVL
1994CHEVROLETCAVALIER Z24
1994CHEVROLETCORSICA
1993CHEVROLETBERETTABASE MODEL
1993CHEVROLETBERETTAGT
1993CHEVROLETBERETTAGTZ
1993CHEVROLETCAVALIERRS
1993CHEVROLETCAVALIERVL
1993CHEVROLETCAVALIER Z24
1993CHEVROLETCORSICALT
1992CHEVROLETBERETTABASE MODEL
1992CHEVROLETBERETTAGT
1992CHEVROLETBERETTAGTZ
1992CHEVROLETCAVALIERRS
1992CHEVROLETCAVALIERVL
1992CHEVROLETCAVALIER Z24
1992CHEVROLETCORSICALT
1991CHEVROLETBERETTABASE MODEL
1991CHEVROLETBERETTAGT
1991CHEVROLETBERETTAGTZ
1991CHEVROLETCAVALIERRS
1991CHEVROLETCAVALIERVL
1991CHEVROLETCAVALIER Z24
1991CHEVROLETCORSICALT
1990CHEVROLETBERETTABASE MODEL
1990CHEVROLETBERETTAGT
1990CHEVROLETBERETTAGTZ
1990CHEVROLETCAVALIERBASE MODEL
1990CHEVROLETCAVALIERVL
1990CHEVROLETCAVALIER Z24
1990CHEVROLETCORSICALT
1990CHEVROLETCORSICALTZ
1989CHEVROLETBERETTABASE MODEL
1989CHEVROLETBERETTAGT
1989CHEVROLETCAVALIER
1989CHEVROLETCAVALIER Z24
1989CHEVROLETCORSICABASE MODEL
1989CHEVROLETCORSICALTZ
1988CHEVROLETBERETTA
1988CHEVROLETCAVALIERBASE MODEL
1988CHEVROLETCAVALIERRS
1988CHEVROLETCAVALIERVL
1988CHEVROLETCAVALIER Z24
1988CHEVROLETCORSICA
1987CHEVROLETCAVALIERBASE MODEL
1987CHEVROLETCAVALIERCS
1987CHEVROLETCAVALIERRS
1987CHEVROLETCAVALIER Z24
1986CHEVROLETCAVALIERBASE MODEL
1986CHEVROLETCAVALIERCS
1986CHEVROLETCAVALIERRS
1986CHEVROLETCAVALIER Z24
1985CHEVROLETCAVALIERBASE MODEL
1985CHEVROLETCAVALIERCS
1985CHEVROLETCAVALIERTYPE-10
1984CHEVROLETCAVALIERBASE MODEL
1984CHEVROLETCAVALIERCS
1984CHEVROLETCAVALIERTYPE-10
1983CHEVROLETCAVALIERBASE MODEL
1983CHEVROLETCAVALIERCL
1983CHEVROLETCAVALIERCS
1982CHEVROLETCAVALIER
1991FORDTHUNDERBIRDBASE MODEL
1991FORDTHUNDERBIRDLX
1991FORDTHUNDERBIRDSC
1990FORDTHUNDERBIRDBASE MODEL
1990FORDTHUNDERBIRDLX
1990FORDTHUNDERBIRDSC
1989FORDTHUNDERBIRDBASE MODEL
1989FORDTHUNDERBIRDLX
1989FORDTHUNDERBIRDSC
1991MERCURYCOUGARLS
1991MERCURYCOUGARXR-7
1990MERCURYCOUGARLS
1990MERCURYCOUGARXR-7
1989MERCURYCOUGARLS
1989MERCURYCOUGARXR-7
1998OLDSMOBILEACHIEVA
1997OLDSMOBILEACHIEVASC
1997OLDSMOBILEACHIEVASL
1996OLDSMOBILEACHIEVABASE MODEL
1996OLDSMOBILEACHIEVASC
1996OLDSMOBILEACHIEVASL
1995OLDSMOBILEACHIEVAS
1995OLDSMOBILEACHIEVASL
1994OLDSMOBILEACHIEVAS
1994OLDSMOBILEACHIEVASC
1994OLDSMOBILEACHIEVASL
1993OLDSMOBILEACHIEVAS
1993OLDSMOBILEACHIEVASCX
1993OLDSMOBILEACHIEVASL
1992OLDSMOBILEACHIEVAS
1992OLDSMOBILEACHIEVASC
1992OLDSMOBILEACHIEVASCX
1992OLDSMOBILEACHIEVASL
1991OLDSMOBILECUTLASS CALAISBASE MODEL
1991OLDSMOBILECUTLASS CALAISINTERNATIONAL
1991OLDSMOBILECUTLASS CALAISS
1991OLDSMOBILECUTLASS CALAISSL
1990OLDSMOBILECUTLASS CALAISBASE MODEL
1990OLDSMOBILECUTLASS CALAISINTERNATIONAL
1990OLDSMOBILECUTLASS CALAISS
1990OLDSMOBILECUTLASS CALAISSL
1989OLDSMOBILECUTLASS CALAISBASE MODEL
1989OLDSMOBILECUTLASS CALAISINTERNATIONAL
1989OLDSMOBILECUTLASS CALAISS
1989OLDSMOBILECUTLASS CALAISSL
1988OLDSMOBILECUTLASS CALAISBASE MODEL
1988OLDSMOBILECUTLASS CALAISINTERNATIONAL
1988OLDSMOBILECUTLASS CALAISSL
1998PONTIACGRAND AMGT
1998PONTIACGRAND AMSE
1997PONTIACGRAND AMGT
1997PONTIACGRAND AMSE
1996PONTIACGRAND AMGT
1996PONTIACGRAND AMSE
1995PONTIACGRAND AMGT
1995PONTIACGRAND AMSE
1994PONTIACGRAND AMGT
1994PONTIACGRAND AMSE
1994PONTIACSUNBIRDBASE MODEL
1994PONTIACSUNBIRDLE
1994PONTIACSUNBIRDSE
1993PONTIACGRAND AMGT
1993PONTIACGRAND AMSE
1993PONTIACSUNBIRDGT
1993PONTIACSUNBIRDLE
1993PONTIACSUNBIRDSE
1992PONTIACGRAND AMGT
1992PONTIACGRAND AMSE
1992PONTIACLEMANSBASE MODEL
1992PONTIACLEMANSVALUE LEADER
1992PONTIACSUNBIRDGT
1992PONTIACSUNBIRDLE
1992PONTIACSUNBIRDSE
1991PONTIACGRAND AMBASE MODEL
1991PONTIACGRAND AMLE
1991PONTIACGRAND AMSE
1991PONTIACLEMANSLE
1991PONTIACLEMANSLE AEROCOUPE
1991PONTIACLEMANSVALUE LEADER
1991PONTIACSUNBIRDBASE MODEL
1991PONTIACSUNBIRDGT
1991PONTIACSUNBIRDLE
1991PONTIACSUNBIRDSE
1990PONTIACGRAND AMLE
1990PONTIACGRAND AMSE
1990PONTIACLEMANSGSE
1990PONTIACLEMANSLE
1990PONTIACLEMANSLE AEROCOUPE
1990PONTIACLEMANSVALUE LEADER
1990PONTIACSUNBIRDGT
1990PONTIACSUNBIRDLE
1990PONTIACSUNBIRDSE
1989PONTIACGRAND AMLE
1989PONTIACGRAND AMSE
1989PONTIACLEMANSAEROCOUPE YL
1989PONTIACLEMANSBASE MODEL
1989PONTIACLEMANSGSE
1989PONTIACLEMANSSE
1989PONTIACSUNBIRDGT
1989PONTIACSUNBIRDLE
1989PONTIACSUNBIRDSE
1988PONTIACGRAND AMBASE MODEL
1988PONTIACGRAND AMLE
1988PONTIACGRAND AMSE
1988PONTIACLEMANSAEROCOUPE
1988PONTIACLEMANSAEROCOUPE YL
1988PONTIACLEMANSBASE MODEL
1988PONTIACLEMANSSE
1988PONTIACSUNBIRDBASE MODEL
1988PONTIACSUNBIRDGT
1988PONTIACSUNBIRDSE
1987PONTIACGRAND AMBASE MODEL
1987PONTIACGRAND AMLE
1987PONTIACGRAND AMSE
1987PONTIACSUNBIRDBASE MODEL
1987PONTIACSUNBIRDGT
1987PONTIACSUNBIRDSE
1986PONTIACGRAND AMBASE MODEL
1986PONTIACGRAND AMLE
1986PONTIACGRAND AMSE
1986PONTIACSUNBIRDBASE MODEL
1986PONTIACSUNBIRDGT
1986PONTIACSUNBIRDSE
1985PONTIACGRAND AMBASE MODEL
1985PONTIACGRAND AMLE
1985PONTIACSUNBIRDBASE MODEL
1985PONTIACSUNBIRDLE
1985PONTIACSUNBIRDSE
1984PONTIACJ2000SUNBIRD
1984PONTIACJ2000SUNBIRD LE
1984PONTIACJ2000SUNBIRD SE
1983PONTIACJ2000
1982PONTIACJ2000
2000TOYOTARAV4
1999TOYOTARAV4
1998TOYOTARAV4
1997TOYOTARAV42-DOOR
1997TOYOTARAV4BASE MODEL
1996TOYOTARAV42-DOOR
1996TOYOTARAV4BASE MODEL
2003VOLKSWAGENEUROVAN
2002VOLKSWAGENEUROVAN
2001VOLKSWAGENEUROVAN
2000VOLKSWAGENEUROVAN
1999VOLKSWAGENEUROVAN
1997VOLKSWAGENEUROVANCAMPER
1996VOLKSWAGENEUROVANCAMPER
1995VOLKSWAGENEUROVANCAMPER
1993VOLKSWAGENEUROVANCL
1993VOLKSWAGENEUROVANGL
1993VOLKSWAGENEUROVANMV
1991VOLKSWAGENVANAGONBASE MODEL
1991VOLKSWAGENVANAGONCAMPMOBILE
1991VOLKSWAGENVANAGONSYNCRO
1990VOLKSWAGENVANAGONBASE MODEL
1990VOLKSWAGENVANAGONCAMPMOBILE
1990VOLKSWAGENVANAGONSYNCRO
1989VOLKSWAGENVANAGONBASE MODEL
1989VOLKSWAGENVANAGONCAMPMOBILE
1989VOLKSWAGENVANAGONSYNCRO
1988VOLKSWAGENVANAGONBASE MODEL
1988VOLKSWAGENVANAGONCAMPMOBILE
1988VOLKSWAGENVANAGONSYNCRO
1987VOLKSWAGENVANAGONBASE MODEL
1987VOLKSWAGENVANAGONCAMPMOBILE
1987VOLKSWAGENVANAGONSYNCRO
1986VOLKSWAGENVANAGONBASE MODEL
1986VOLKSWAGENVANAGONCAMPMOBILE
1986VOLKSWAGENVANAGONSYNCRO
1985VOLKSWAGENVANAGONBASE MODEL
1985VOLKSWAGENVANAGONCAMPMOBILE
