Select your vehicle to see if this part fits:

LoadLifter 5000 ULTIMATE with internal jounce bumper

88211_v0
88211_v088211_v2_2017010188211_v3_2017010188211_v4_20170101
Part Number: 88211
  • Internal jounce bumper prevents damage when driving with an empty air bag
  • Exclusive Air Lift air spring kit
  • Up to 5,000 lbs. of load-leveling capacity*
Eligible for up to $75 Mail-In Rebate*

Product Overview

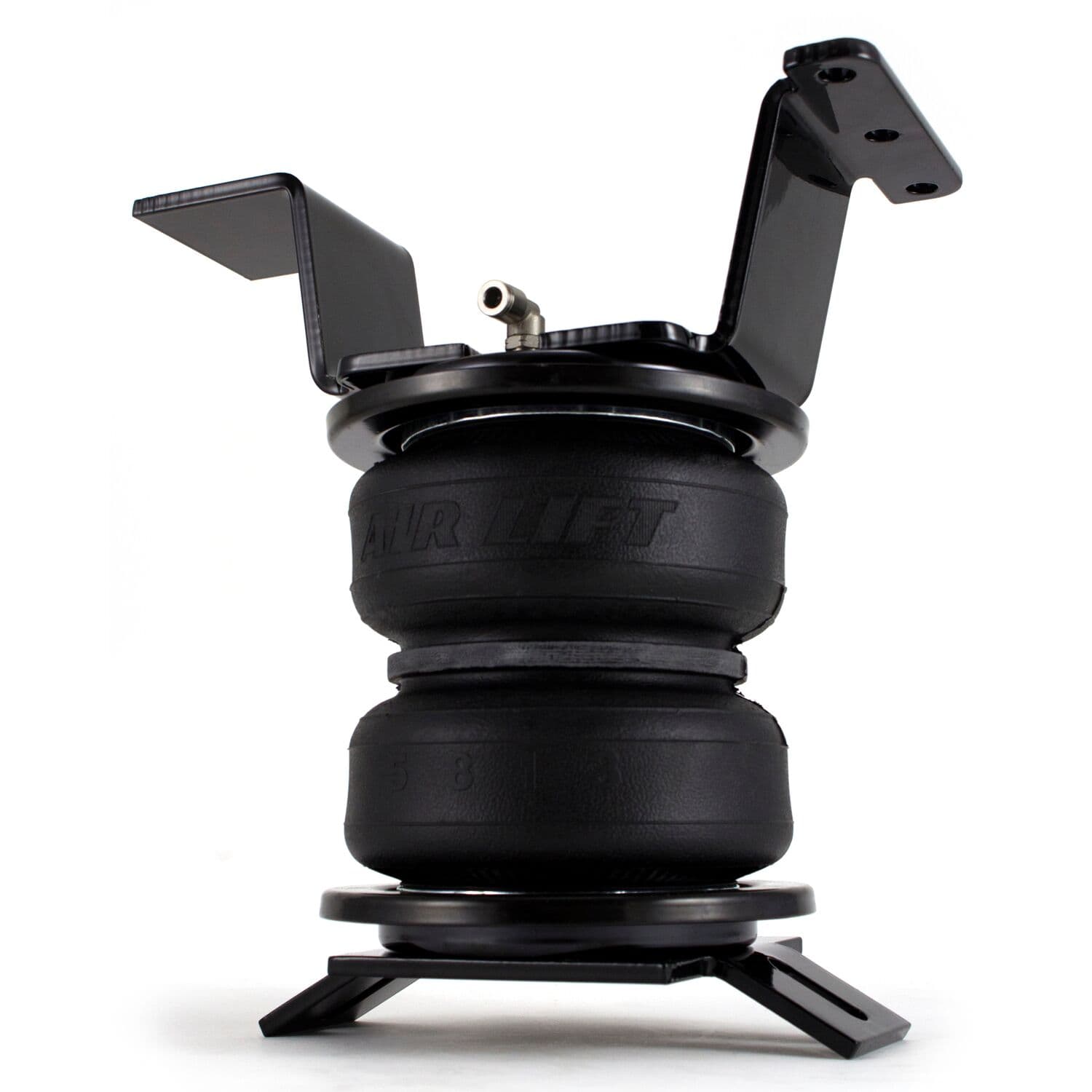

LoadLifter 5000 ULTIMATE adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort.

Tow and Haul with Safety & Comfort

LoadLifter 5000 ULTIMATE works with your vehicle’s leaf springs to provide up to 5,000 lbs. of load leveling capacity* and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded.

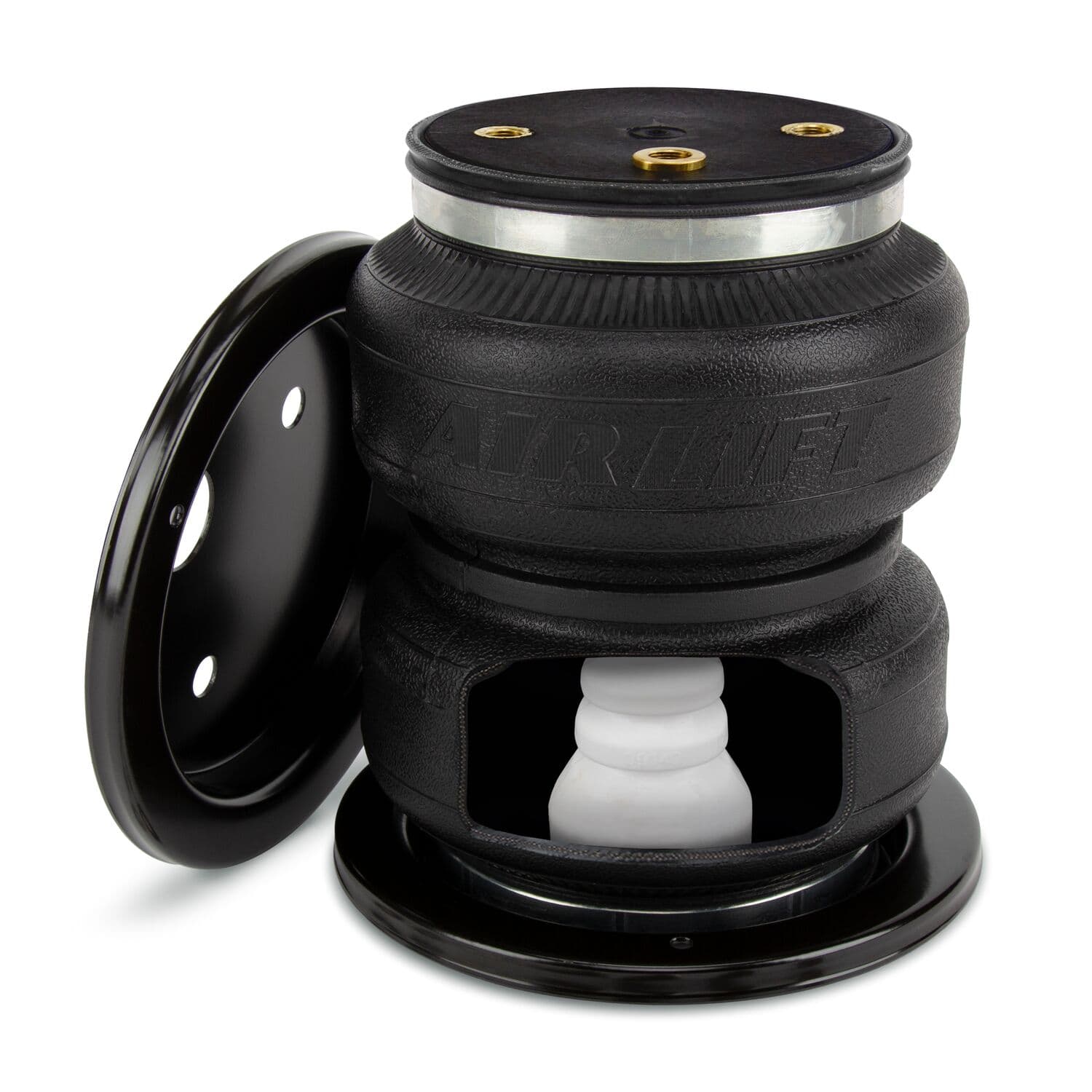

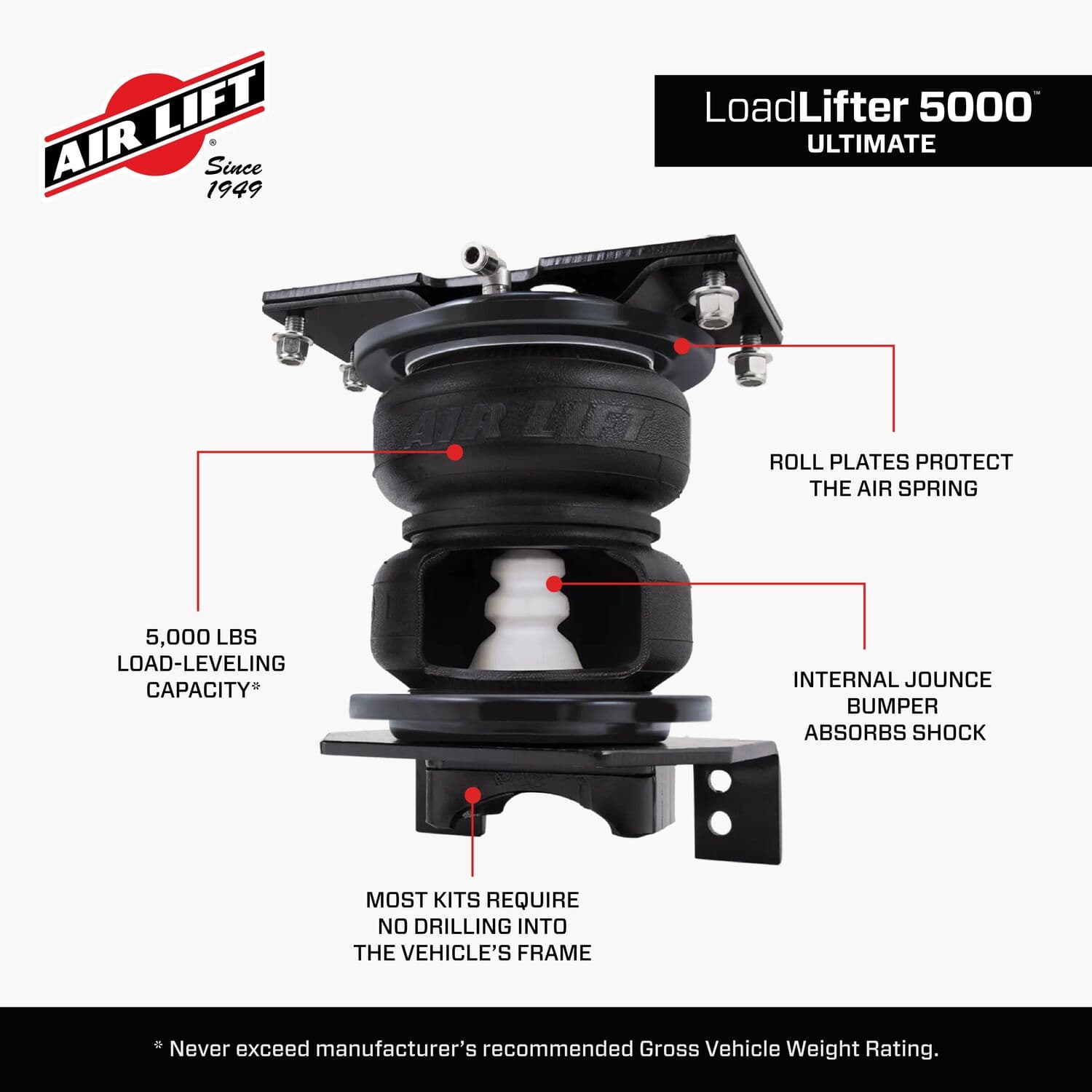

The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE!

LoadLifter 5000 ULTIMATE air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs.

Includes industry-exclusive 60 Day No Questions Money Back Guarantee and the most comprehensive Lifetime Warranty in the industry – covering all kit contents including brackets, fittings and air line.

Air springs are built like a tire and are reinforced by durable,2-ply fabric for maximum strength. Exclusive upper and lower roll plates are included which protect the springs from sharp edges, such as brackets or the frame and help increase load capacity up to 10%.

Each LoadLifter 5000 ULTIMATE kit includes:

  • 2 air springs

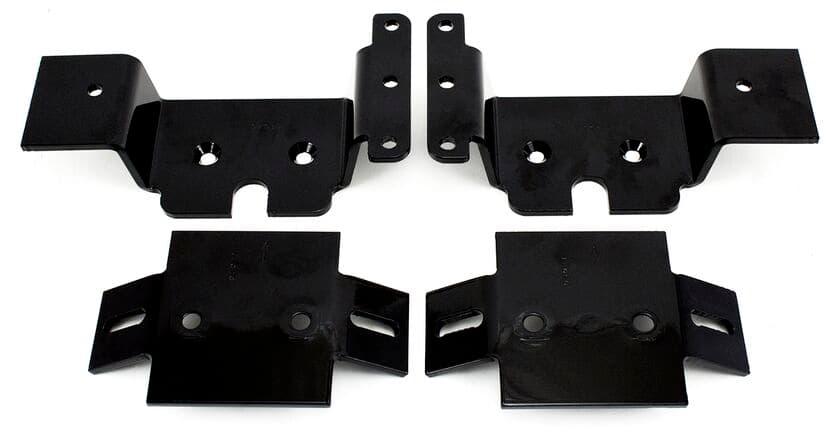

  • All necessary mounting brackets
  • Air lines
  • Schrader valve
  • All of the hardware needed for installation
  • A fully illustrated instruction manual.

Add an Air Lift On-Board Air Compressor System for increased convenience

LoadLifter 5000 ULTIMATE air springs can be easily inflated and deflated on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

Air Lift air spring kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

Additional Information

Shipping Weight 24 lbs
Shipping Box Dimensions 9.5 x 14.5 x 11.25 in
Installation Manual Download Installation Manual
Warranty

Lifetime Limited

Application Type

Rear Kit

Replacement Air Spring

84297

Product Videos

Videos

  • Why Air? Why Air Lift?

  • LoadLifter 5000 Installation

  • On-Board Air Compressor Systems

Compatible Vehicles

This Part Is Compatible With These Vehicles

(Scroll horizontally to view all information within the table.)

YearMakeModelDriveBed Style
2018CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2018CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2017CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2017CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2016CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2016CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2015CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2014CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2014CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2013CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2013CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2012CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2012CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2011CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2011CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2010CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2010CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2009CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2009CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2008CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2008CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2007CHEVROLETSILVERADO 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2007CHEVROLETSILVERADO 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2018GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2018GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2017GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2017GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2016GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2016GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2015GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2015GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2014GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2014GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2013GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2013GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2012GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2012GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2011GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2010GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2010GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2009GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2009GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2008GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2008GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2007GMCSIERRA 15004 Wheel Drive97.6 in./8 ft. 1.6 in. Bed
2007GMCSIERRA 1500Rear Wheel Drive97.6 in./8 ft. 1.6 in. Bed
