Select your vehicle to see if this part fits:

LoadLifter 5000 ULTIMATE with internal jounce bumper

88205_v0
88205_v088205_v188205_v2
Part Number: 88205
  • Internal jounce bumper prevents damage when driving with an empty air bag
  • Exclusive Air Lift air spring kit
  • Up to 5,000 lbs. of load-leveling capacity*

Only fits passenger van with a boxed frame.

Product Overview

LoadLifter 5000 ULTIMATE adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort.

Tow and Haul with Safety & Comfort

LoadLifter 5000 ULTIMATE works with your vehicle’s leaf springs to provide up to 5,000 lbs. of load leveling capacity* and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded.

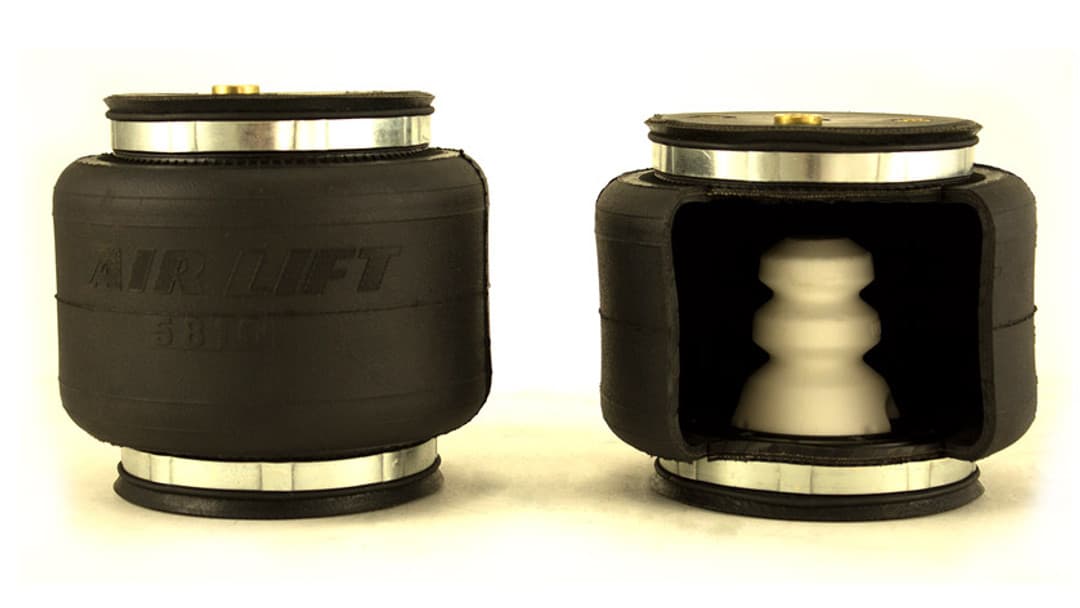

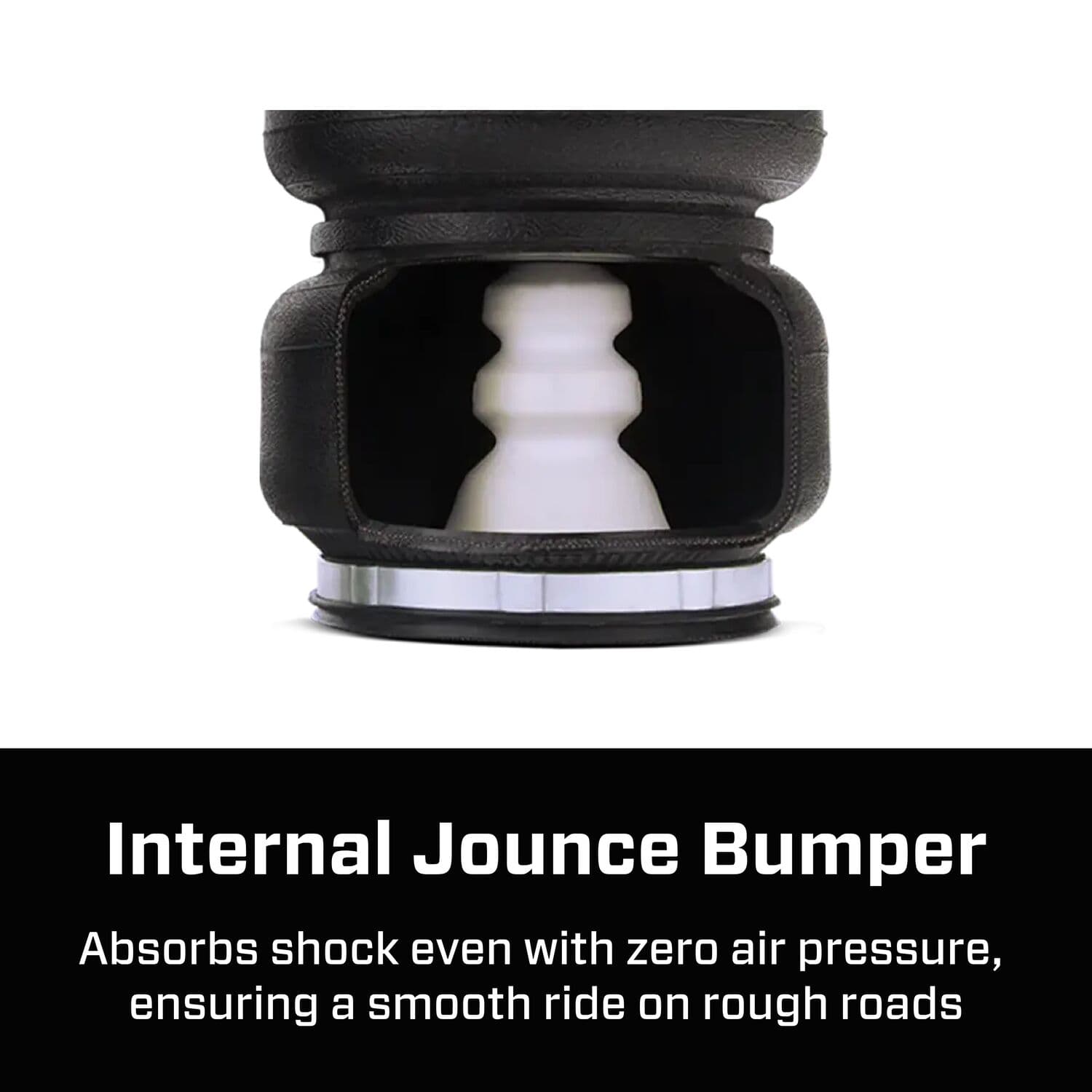

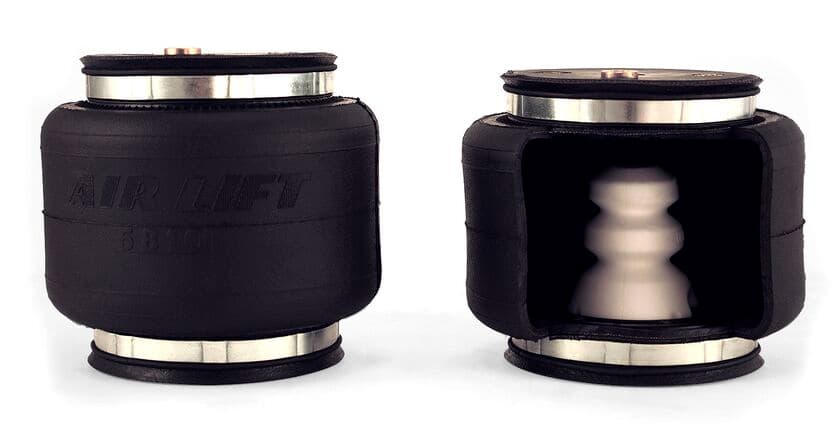

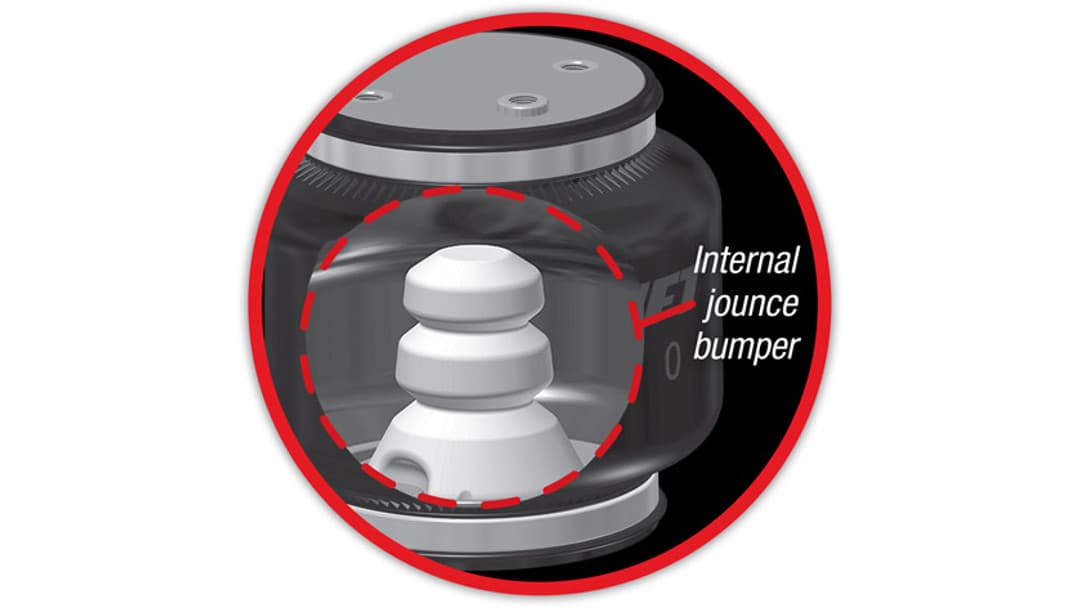

The closed-cell urethane foam jounce bumper inside the air spring provides a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE!

LoadLifter 5000 ULTIMATE air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs.

Includes industry-exclusive 60 Day No Questions Money Back Guarantee and the most comprehensive Lifetime Warranty in the industry – covering all kit contents including brackets, fittings and air line.

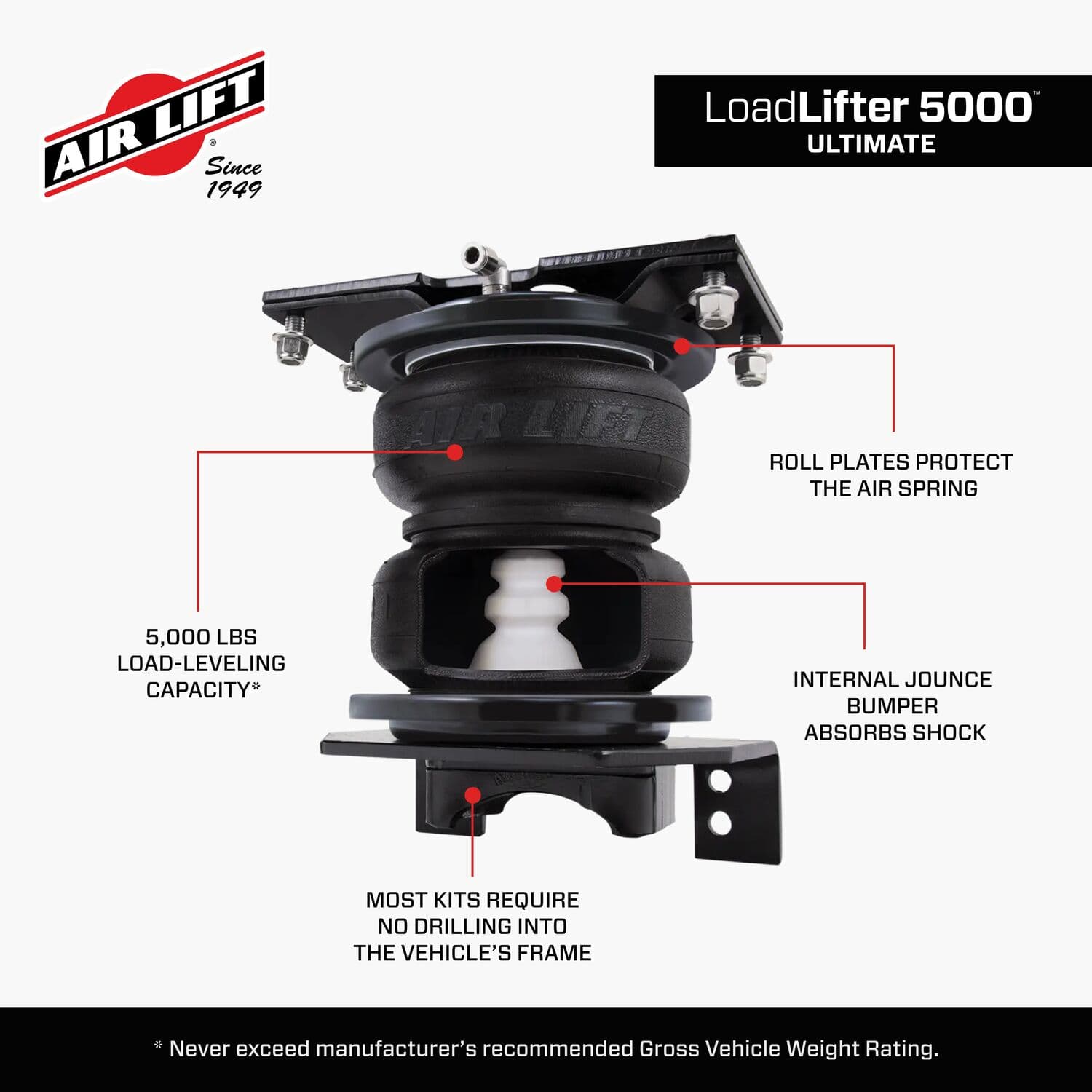

Air springs are built like a tire and are reinforced by durable,2-ply fabric for maximum strength. Exclusive upper and lower roll plates are included which protect the springs from sharp edges, such as brackets or the frame and help increase load capacity up to 10%.

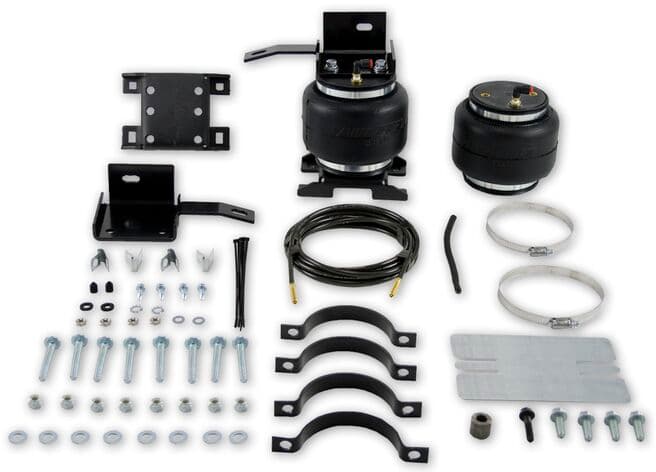

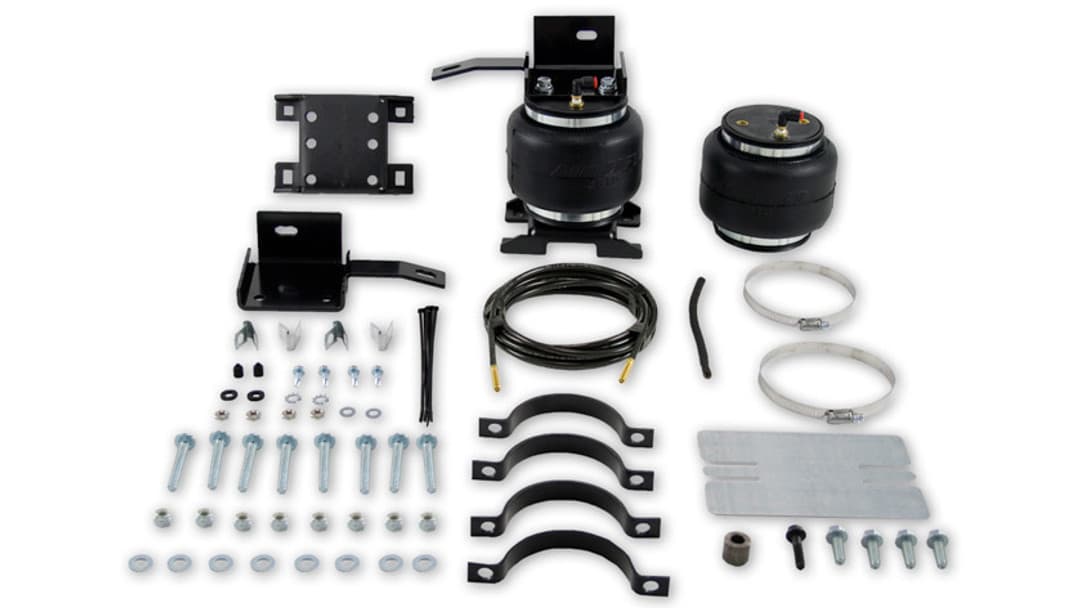

Each LoadLifter 5000 ULTIMATE kit includes:

  • 2 air springs
  • All necessary mounting brackets
  • Air lines
  • Schrader valve
  • All of the hardware needed for installation
  • A fully illustrated instruction manual.

Add an Air Lift On-Board Air Compressor System for increased convenience

LoadLifter 5000 ULTIMATE air springs can be easily inflated and deflated on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

Air Lift air spring kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

Additional Information

Shipping Weight 16.1 lbs
Shipping Box Dimensions 9.5 x 14.5 x 11.25 in
Installation Manual Download Installation Manual
Warranty

Lifetime Limited

Installation Time

2 Hours

Application Type

Rear Kit

Replacement Air Spring

84252

Product Videos

Videos

  • Why Air? Why Air Lift?

  • LoadLifter 5000 Installation

  • On-Board Air Compressor Systems

Compatible Vehicles

This Part Is Compatible With These Vehicles

(Scroll horizontally to view all information within the table.)

YearMakeModelSub Model
2017CHEVROLETEXPRESS 2500
2017CHEVROLETEXPRESS 3500
2016CHEVROLETEXPRESS 2500
2016CHEVROLETEXPRESS 3500
2015CHEVROLETEXPRESS 2500
2015CHEVROLETEXPRESS 3500
2014CHEVROLETEXPRESS 2500
2014CHEVROLETEXPRESS 3500
2013CHEVROLETEXPRESS 2500
2013CHEVROLETEXPRESS 3500
2012CHEVROLETEXPRESS 2500
2012CHEVROLETEXPRESS 3500 PASSENGER VAN
2011CHEVROLETEXPRESS 2500
2011CHEVROLETEXPRESS 3500 PASSENGER VAN
2010CHEVROLETEXPRESS 2500
2010CHEVROLETEXPRESS 3500 PASSENGER VAN
2009CHEVROLETEXPRESS 2500
2009CHEVROLETEXPRESS 3500 PASSENGER VAN
2008CHEVROLETEXPRESS 2500
2008CHEVROLETEXPRESS 3500 PASSENGER VAN
2007CHEVROLETEXPRESS 2500
2007CHEVROLETEXPRESS 3500 PASSENGER VAN
2006CHEVROLETEXPRESS 2500
2006CHEVROLETEXPRESS 3500 PASSENGER VAN
2005CHEVROLETEXPRESS 2500
2005CHEVROLETEXPRESS 3500 PASSENGER VAN
2004CHEVROLETEXPRESS 2500
2004CHEVROLETEXPRESS 3500 PASSENGER VAN
2003CHEVROLETEXPRESS 2500
2003CHEVROLETEXPRESS 3500 PASSENGER VAN
2002CHEVROLETEXPRESS 2500
2002CHEVROLETEXPRESS 3500 PASSENGER VAN
2001CHEVROLETEXPRESS 2500
2001CHEVROLETEXPRESS 3500 PASSENGER VAN
2000CHEVROLETEXPRESS 2500
2000CHEVROLETEXPRESS 3500 PASSENGER VAN
1999CHEVROLETEXPRESS 2500
1999CHEVROLETEXPRESS 3500 PASSENGER VAN
1998CHEVROLETEXPRESS 2500
1998CHEVROLETEXPRESS 3500 PASSENGER VAN
1997CHEVROLETEXPRESS 2500
1997CHEVROLETEXPRESS 3500
1996CHEVROLETEXPRESS 2500
1996CHEVROLETEXPRESS 3500
1996CHEVROLETG30 VANBASE MODEL
1996CHEVROLETG30 VANSPORTVAN
2017GMCSAVANA 2500
2017GMCSAVANA 3500
2016GMCSAVANA 2500
2016GMCSAVANA 3500
2015GMCSAVANA 2500
2015GMCSAVANA 3500
2014GMCSAVANA 2500
2014GMCSAVANA 3500
2013GMCSAVANA 2500
2013GMCSAVANA 3500
2012GMCSAVANA 2500
2012GMCSAVANA 3500
2011GMCSAVANA 2500
2011GMCSAVANA 3500
2010GMCSAVANA 2500
2010GMCSAVANA 3500
2009GMCSAVANA 2500
2009GMCSAVANA 3500
2008GMCSAVANA 2500
2008GMCSAVANA 3500
2007GMCSAVANA 2500
2007GMCSAVANA 3500
2006GMCSAVANA 2500
2006GMCSAVANA 3500
2005GMCSAVANA 2500
2005GMCSAVANA 3500
2004GMCSAVANA 2500
2004GMCSAVANA 3500
2003GMCSAVANA 2500
2003GMCSAVANA 3500
2002GMCSAVANA 2500
2002GMCSAVANA 3500
2001GMCSAVANA 2500
2001GMCSAVANA 3500
2000GMCSAVANA 2500
2000GMCSAVANA 3500
1999GMCSAVANA 2500
1999GMCSAVANA 3500
1998GMCSAVANA 2500
1998GMCSAVANA 3500
1997GMCSAVANA 2500
1997GMCSAVANA 3500
1996GMCG3500 VANBASE MODEL
1996GMCG3500 VANRALLY
1996GMCG3500 VANSPECIAL
1996GMCG3500 VANVANDURA
1996GMCSAVANA 2500
1996GMCSAVANA 3500
