Select your vehicle to see if this part fits:

RideControl

59529_v0
59529_v0
Part Number: 59529
  • Up to 2,000 lbs. of load-leveling capacity*
  • Eliminates squat, trailer sway, rough ride and bottoming out
  • Fits many 1/2 ton and mini pickups and vans
Eligible for up to $75 Mail-In Rebate*

Product Overview

Air Lift RideControl adjustable air spring kits fit many popular leaf sprung vehicles, such as 1/2 ton and mini pickup trucks, full size and mini-vans, and SUVs. RideControl air springs provide up to 2000 pounds of leveling capacity*.

Tow and Haul with Safety & Comfort

Air Lift adjustable air springs work with your existing suspension to give your vehicle more leveling support when you need it, so your vehicle is always level and stable. Proper weight distribution to all tires means more safety and a more comfortable ride as well. This results in:

Improved braking and steering: when all four tires are firmly on the ground, braking time and steering are both improved

Less sway: Air springs increase spring rate and vastly improve vehicle stability

Less bottoming out: Air springs provide adjustable load support to help prevent bottoming out on rough roads.

Headlight aim: Only level and stable vehicles provide safe and proper headlight aiming

Less porpoising: Even vehicles which don’t squat when loaded can begin to “porpoise” vertically when towing heavy trailers. Adjustable air springs dramatically reduce this problem for a safer, more comfortable ride.

More even tire wear: when weight is evenly distributed to all four tires, tires wear more evenly.

RideControl air springs fit easily between the leaf spring and your vehicle’s frame to provide suspension support. To operate, just add air to the air springs if you are carrying a heavy load to ensure that your vehicle remains level and stable. Then, deflate when riding empty. Air spring pressure is controlled through air line tubing that connects to the most convenient spot on your vehicle’s chassis. Our air springs are fully adjustable from 5 to 100 PSI.

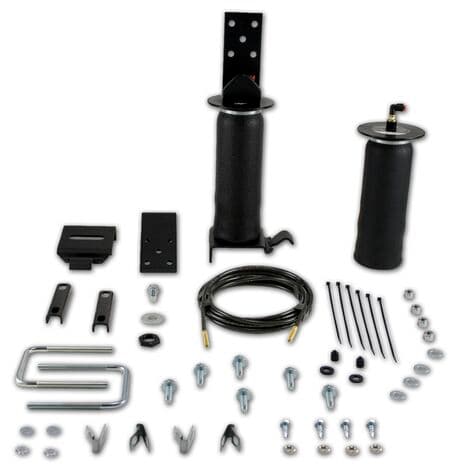

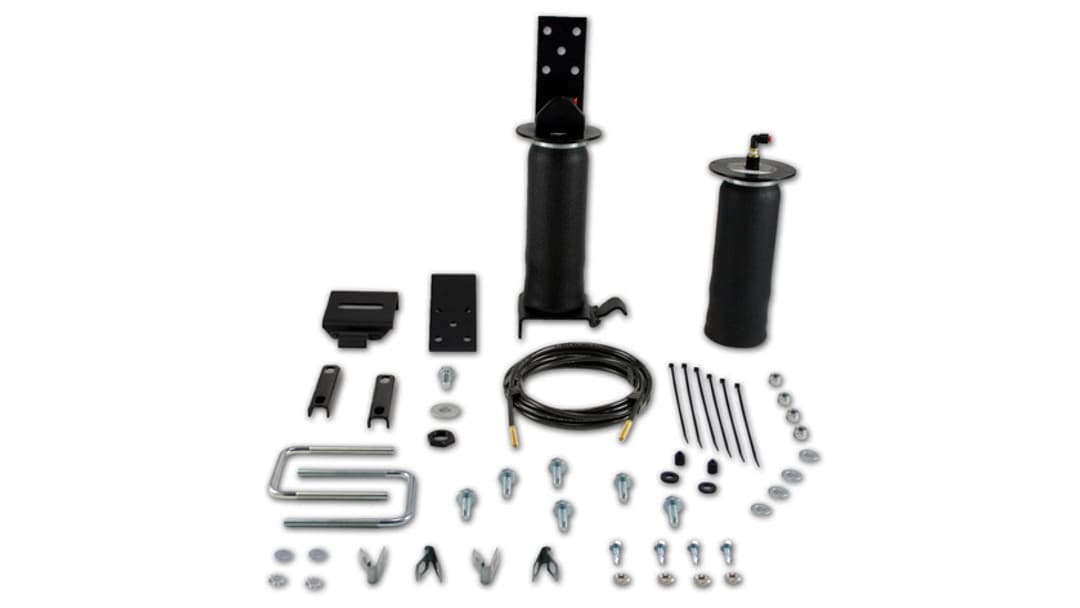

Each RideControl kit also includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware you need for installation. RideControl air spring kits are engineered to be installed in under 2 hours and include a fully illustrated, user-friendly instruction manual. You can install them yourself or one of our installers throughout the US and Canada can install the kit for you.

Add an Air Lift On-Board Air Compressor System for increased convenience

RideControl air springs can be easily inflated and deflated on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund. RideControl kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

Suspension Specialists since 1949

Air Lift has focused solely on designing, engineering and manufacturing the best suspension products since our inception in 1949. Because all of our attention is focused on suspension products, you can be sure your family and cargo’s safety is our top priority. We are proud to be a family owned company based in Lansing, Michigan.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

Additional Information

Shipping Weight 11 lbs
Shipping Box Dimensions 9.5 x 14.5 x 11.25 in
Installation Manual Download Installation Manual
Warranty

Lifetime Limited

Application Type

Rear Kit

Replacement Air Spring

50202

Product Videos

Videos

  • Why Air? Why Air Lift?

  • RideControl Installation

  • On-Board Air Compressor Systems

Compatible Vehicles

This Part Is Compatible With These Vehicles

(Scroll horizontally to view all information within the table.)

YearMakeModelDriveSub Model
2003CHEVROLETS10 PICKUP
2002CHEVROLETS10 PICKUP
2001CHEVROLETS10 PICKUP
2000CHEVROLETS10 PICKUP
1999CHEVROLETS10 PICKUP
1998CHEVROLETS10 PICKUP
1997CHEVROLETS10 PICKUP
1996CHEVROLETS10 PICKUP
1995CHEVROLETS10 PICKUP
1994CHEVROLETS10 PICKUP
1993CHEVROLETS10 PICKUP
1992CHEVROLETS10 PICKUP
1991CHEVROLETS10 PICKUP
1990CHEVROLETS10 PICKUP
1989CHEVROLETS10 PICKUP
1988CHEVROLETS10 PICKUP
1987CHEVROLETS10 PICKUP
1986CHEVROLETS10 PICKUP
1985CHEVROLETS10 PICKUP
1984CHEVROLETS10 PICKUP
1983CHEVROLETS10 PICKUP
1982CHEVROLETS10 PICKUP
2002DODGEDURANGO4 Wheel Drive
2001DODGEDURANGO4 Wheel Drive
2000DODGEDURANGO4 Wheel Drive
1999DODGEDURANGO4 Wheel Drive
1998DODGEDURANGO4 Wheel Drive
2003GMCSONOMA
2002GMCSONOMA
2001GMCSONOMA
2000GMCSONOMA
1999GMCSONOMA
1998GMCSONOMA
1997GMCSONOMA
1996GMCSONOMA
1995GMCSONOMA
1994GMCSONOMA
1993GMCSONOMA
1992GMCSONOMABASE MODEL
1992GMCSONOMAGT
1991GMCSONOMA
1990GMCS15 PICKUP
1989GMCS15 PICKUP
1988GMCS15 PICKUP
1987GMCS15 PICKUP
1986GMCS15 PICKUP
1985GMCS15 PICKUP
1984GMCS15 PICKUP
1983GMCS15 PICKUP
1982GMCS15 PICKUP
2000ISUZUHOMBRE
1999ISUZUHOMBRE
1998ISUZUHOMBRE
1997ISUZUHOMBRE
1996ISUZUHOMBRE
1994ISUZUPICKUPBASE MODEL
1994ISUZUPICKUPRear Wheel DriveNORMAL CAB
1993ISUZUPICKUPBASE MODEL
1993ISUZUPICKUPRear Wheel DriveNORMAL CAB
1992ISUZUPICKUP1 TON
1992ISUZUPICKUPBASE MODEL
1992ISUZUPICKUPRear Wheel DriveNORMAL CAB
1991ISUZUPICKUP1 TON
1991ISUZUPICKUPBASE MODEL
1991ISUZUPICKUPRear Wheel DriveNORMAL CAB
1990ISUZUPICKUP1 TON
1990ISUZUPICKUPBASE MODEL
1990ISUZUPICKUPRear Wheel DriveNORMAL CAB
1989ISUZUPICKUP1 TON
1989ISUZUPICKUPBASE MODEL
1989ISUZUPICKUPRear Wheel DriveNORMAL CAB
1988ISUZUPICKUP1 TON
1988ISUZUPICKUPBASE MODEL
1988ISUZUPICKUPRear Wheel DriveLS
1988ISUZUPICKUPRear Wheel DriveNORMAL CAB
1987ISUZUPICKUPBASE MODEL
1987ISUZUPICKUPRear Wheel DriveNORMAL CAB
1986ISUZUPICKUP
1985ISUZUPICKUP
1984ISUZUPICKUP
1983ISUZUPICKUP
1982ISUZUPICKUP
1981ISUZUPICKUP
1993MITSUBISHIMIGHTY MAX
1992MITSUBISHIMIGHTY MAXBASE MODEL
1992MITSUBISHIMIGHTY MAXLWB
1992MITSUBISHIMIGHTY MAXRear Wheel DriveSWB
1991MITSUBISHIMIGHTY MAX
1990MITSUBISHIMIGHTY MAX
1989MITSUBISHIMIGHTY MAXBASE MODEL
1989MITSUBISHIMIGHTY MAXRear Wheel DriveLWB
1989MITSUBISHIMIGHTY MAXRear Wheel DriveSPX
1989MITSUBISHIMIGHTY MAXRear Wheel DriveSWB
1988MITSUBISHIMIGHTY MAXBASE MODEL
1988MITSUBISHIMIGHTY MAXRear Wheel DriveSPORT
1988MITSUBISHIMIGHTY MAXRear Wheel DriveSPX
1987MITSUBISHIMIGHTY MAXBASE MODEL
1987MITSUBISHIMIGHTY MAXRear Wheel DriveSPX
1986MITSUBISHIMIGHTY MAXBASE MODEL
1986MITSUBISHIMIGHTY MAXRear Wheel DriveSPX
1985MITSUBISHIMIGHTY MAXBASE MODEL
1985MITSUBISHIMIGHTY MAXSP
1984MITSUBISHIMIGHTY MAXBASE MODEL
1984MITSUBISHIMIGHTY MAXS
1984MITSUBISHIMIGHTY MAXRear Wheel DriveSP
1984MITSUBISHIMIGHTY MAXRear Wheel DriveSPX
1983MITSUBISHIMIGHTY MAXBASE MODEL
1983MITSUBISHIMIGHTY MAXRear Wheel DriveS
1983MITSUBISHIMIGHTY MAXRear Wheel DriveSP
1983MITSUBISHIMIGHTY MAXRear Wheel DriveSPX
1997NISSANPICKUP D21 HARD BODYBASE MODEL
1997NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1997NISSANPICKUP D21 HARD BODYRear Wheel DriveSHORT BED XE
1997NISSANPICKUP D21 HARD BODYRear Wheel DriveXE
1996NISSANPICKUP D21 HARD BODYBASE MODEL
1996NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1996NISSANPICKUP D21 HARD BODYRear Wheel DriveSHORT BED XE
1996NISSANPICKUP D21 HARD BODYRear Wheel DriveXE
1995NISSANPICKUP D21 HARD BODYBASE MODEL
1995NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1995NISSANPICKUP D21 HARD BODYRear Wheel DriveSHORT BED XE
1995NISSANPICKUP D21 HARD BODYRear Wheel DriveXE
1994NISSANPICKUP D21 HARD BODYBASE MODEL
1994NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1994NISSANPICKUP D21 HARD BODYRear Wheel DriveXE
1993NISSANPICKUP D21 HARD BODYBASE MODEL
1993NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1992NISSANPICKUP D21 HARD BODYBASE MODEL
1992NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1991NISSANPICKUP D21 HARD BODYBASE MODEL
1991NISSANPICKUP D21 HARD BODYRear Wheel DriveSE
1990NISSANPICKUP D21 HARD BODY
1989NISSANPICKUP D21 HARD BODY
1988NISSANPICKUP D21 HARD BODY
1987NISSANPICKUP D21 HARD BODY
1986NISSAN720 PICKUP
1986NISSANPICKUP D21 HARD BODY
1985NISSAN720 PICKUP
1984NISSAN720 PICKUP
1983NISSAN720 PICKUP
1982NISSAN720 PICKUP
1981NISSAN720 PICKUP
1980NISSAN720 PICKUP
1979NISSAN620 PICKUP
1978NISSAN620 PICKUP
1977NISSAN620 PICKUP
1976NISSAN620 PICKUP
1975NISSAN620 PICKUP
1974NISSAN620 PICKUP
1973NISSAN620 PICKUP
1972NISSAN521 PICKUP
1972NISSAN620 PICKUP
1971NISSAN521 PICKUP
1970NISSAN521 PICKUP
1969NISSAN521 PICKUP
