Select your vehicle to see if this part fits:

LoadLifter 5000

57298_v0
57298_v057298_v157298_v257298_v357298_v5
Part Number: 57298
  • Up to 5,000 lbs. of load-leveling capacity*
  • Eliminates squat, trailer sway, rough ride and bottoming out
  • Fits many 3/4 ton and 1 ton pickups and vans

Kit only fits applications with a Reese fifth wheel hitch.

Eligible for up to $75 Mail-In Rebate*

Product Overview

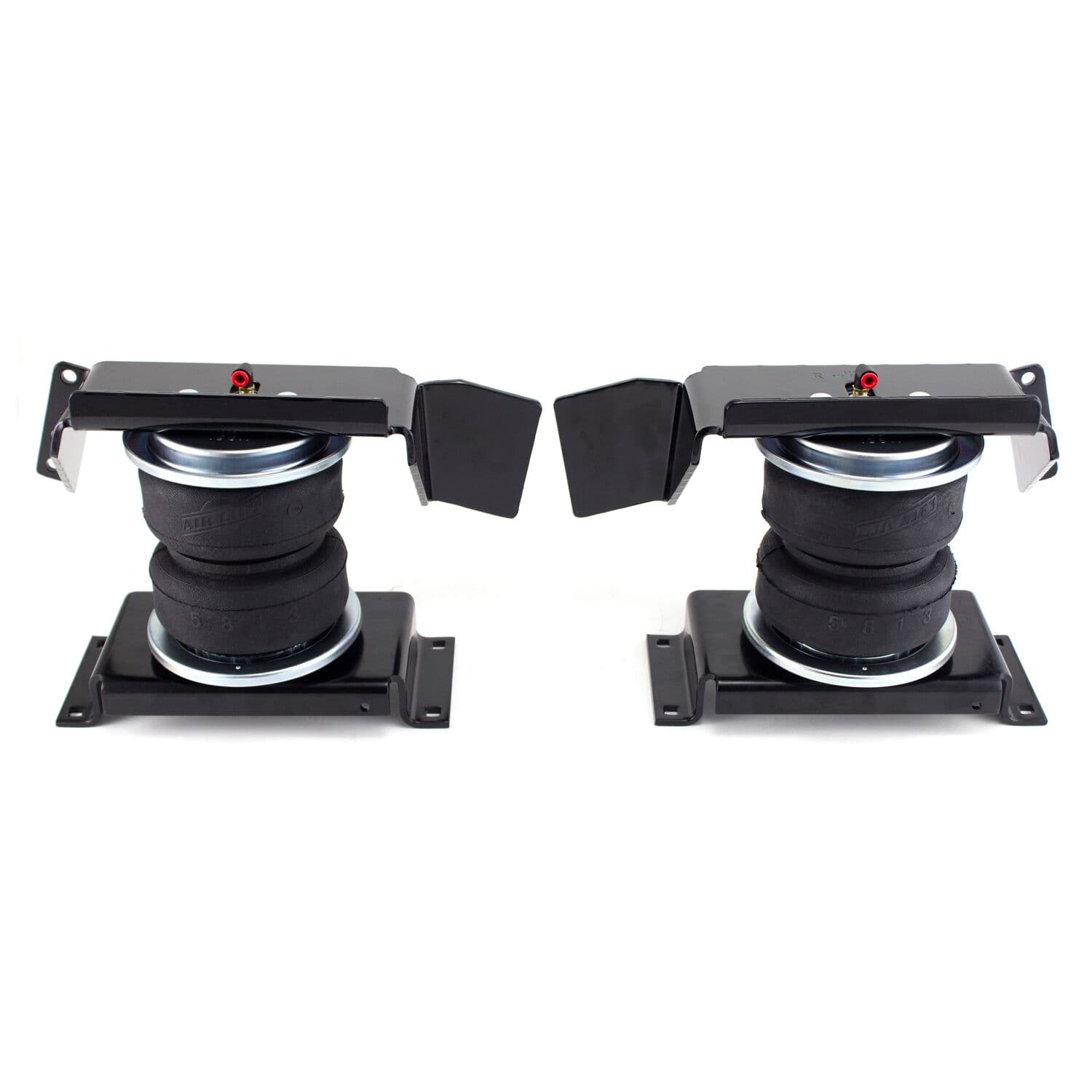

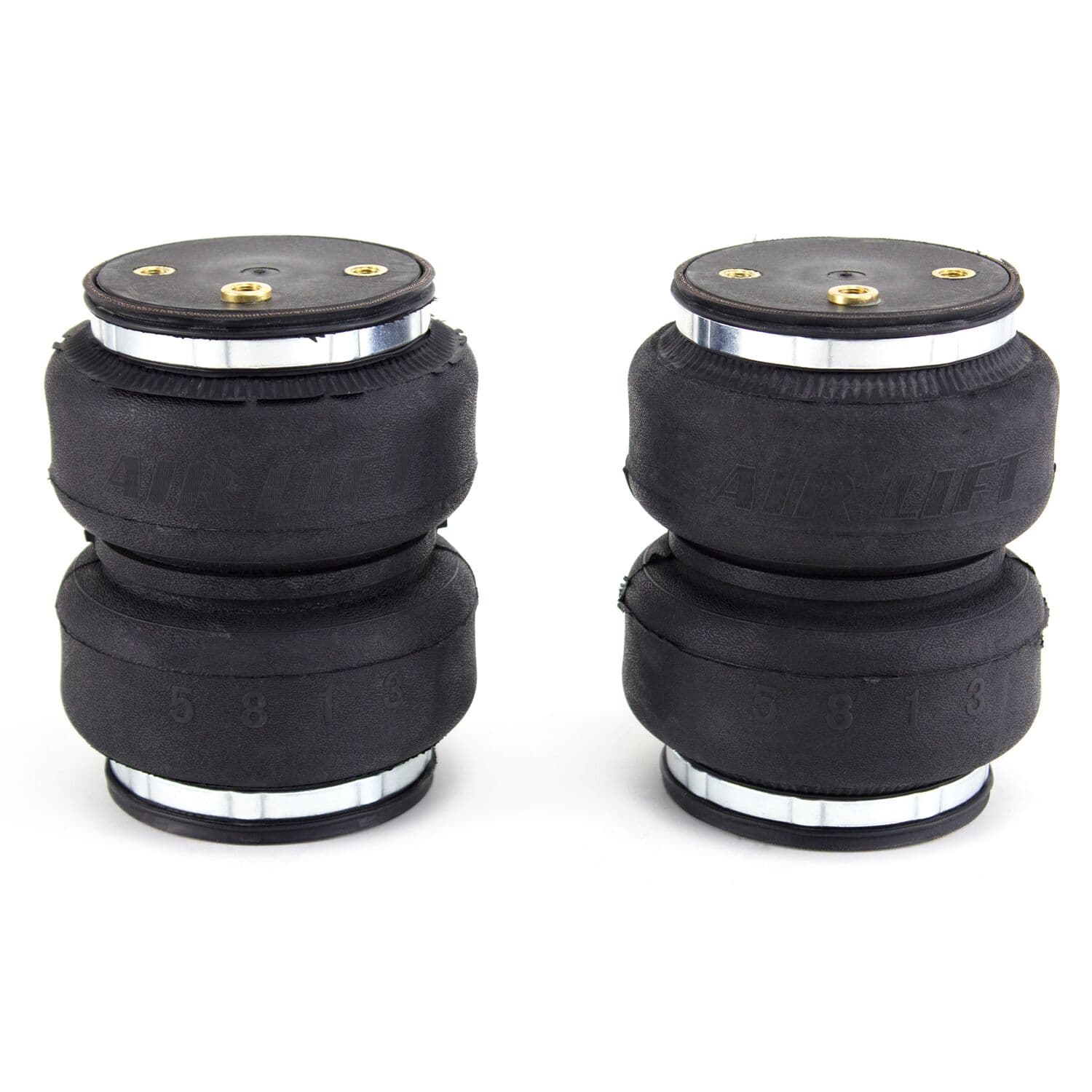

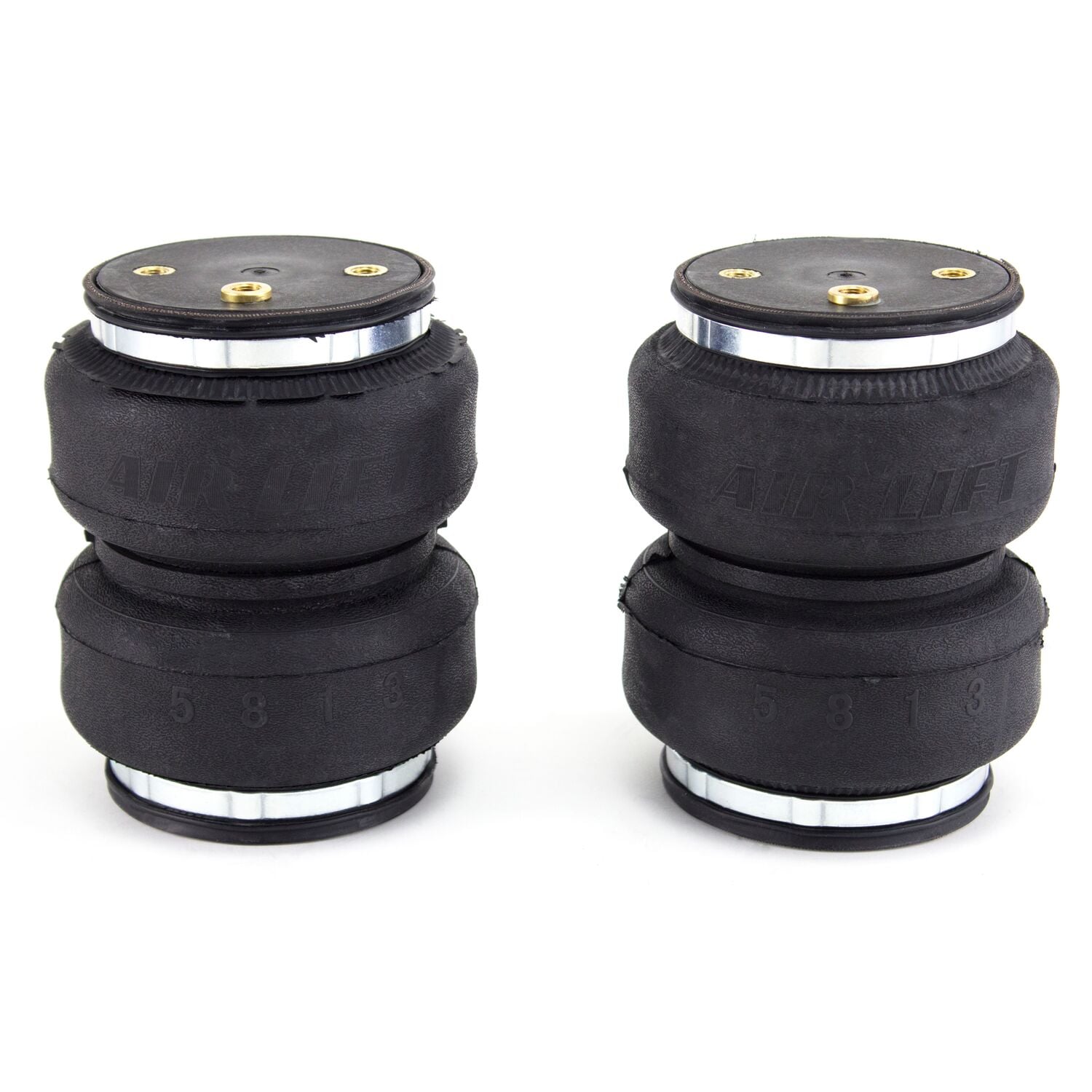

LoadLifter 5000 kits are Air Lift’s heaviest-rated air spring kits, specifically engineered for hauling or towing heavy loads. LoadLifter 5000 air springs are designed to fit popular vehicles like 3/4 ton and one-ton pickup trucks, motor homes, commercial trucks and other severe uses. LoadLifter 5000 air springs provide up to 5,000 pounds of leveling capacity* for support of your heaviest loads.

Tow and Haul with Safety & Comfort

Air Lift adjustable air springs work with your existing suspension to give your vehicle more leveling support when you need it, so your vehicle is always level and stable. Proper weight distribution to all tires means more safety and a more comfortable ride as well. This results in:

Improved braking and steering: when all four tires are firmly on the ground, braking time and steering are both improved.

Less sway: Air springs increase spring rate and vastly improve vehicle stability.

Less bottoming out: Air springs provide adjustable load support to help prevent bottoming out on rough roads.

Headlight aim: Only level and stable vehicles provide safe and proper headlight aiming.

Less porpoising: Even heavy pickups which don’t squat when loaded can begin to “porpoise” vertically when towing heavy trailers. Adjustable air springs dramatically reduce this problem for a safer, more comfortable ride.

More even tire wear: when weight is evenly distributed to all four tires, tires wear more evenly.

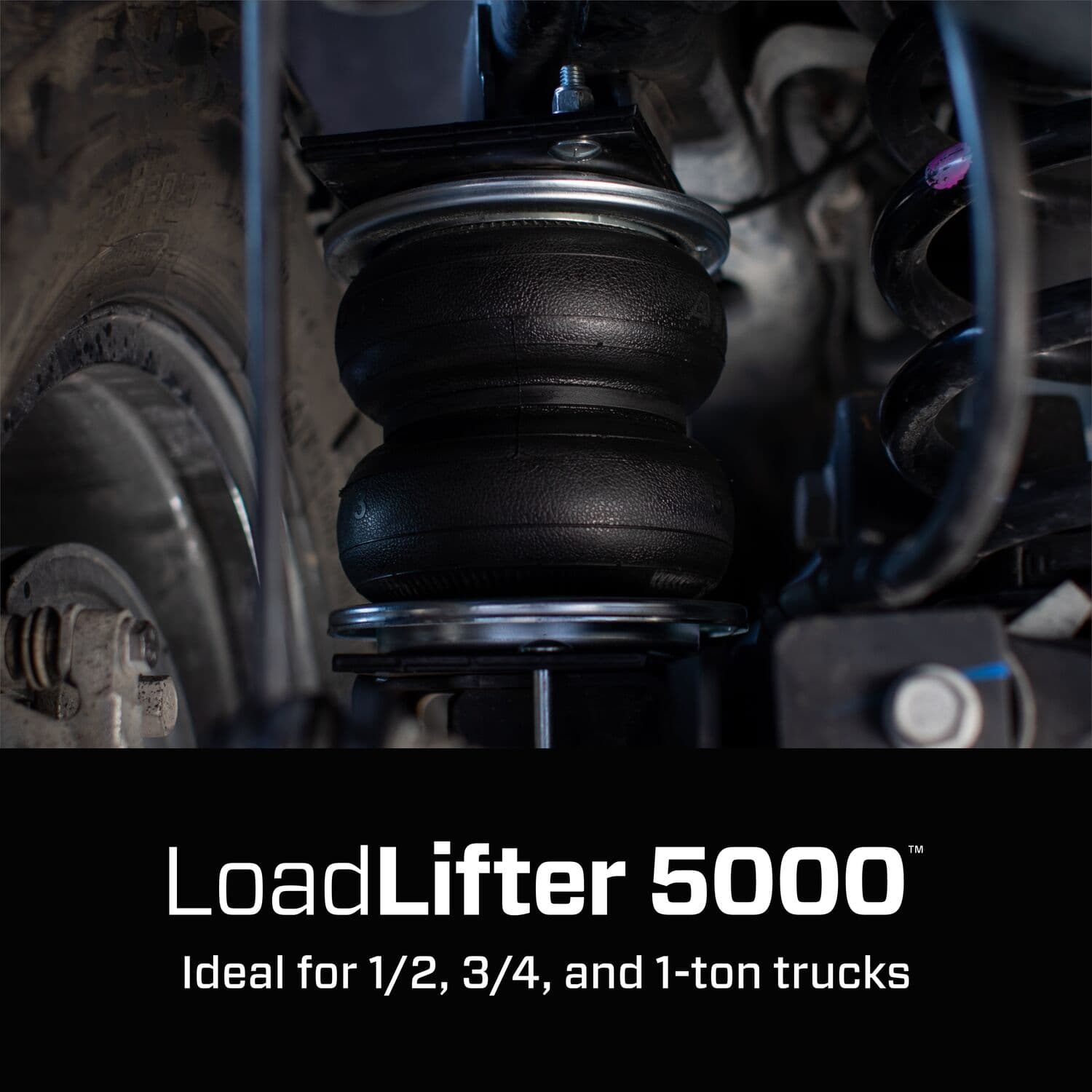

LoadLifter 5000 air springs fit easily between the frame and the axle to provide suspension support. To operate, just add air to the air springs if you are carrying a heavy load to make sure that your vehicle remains level and stable. Then, deflate when riding empty.

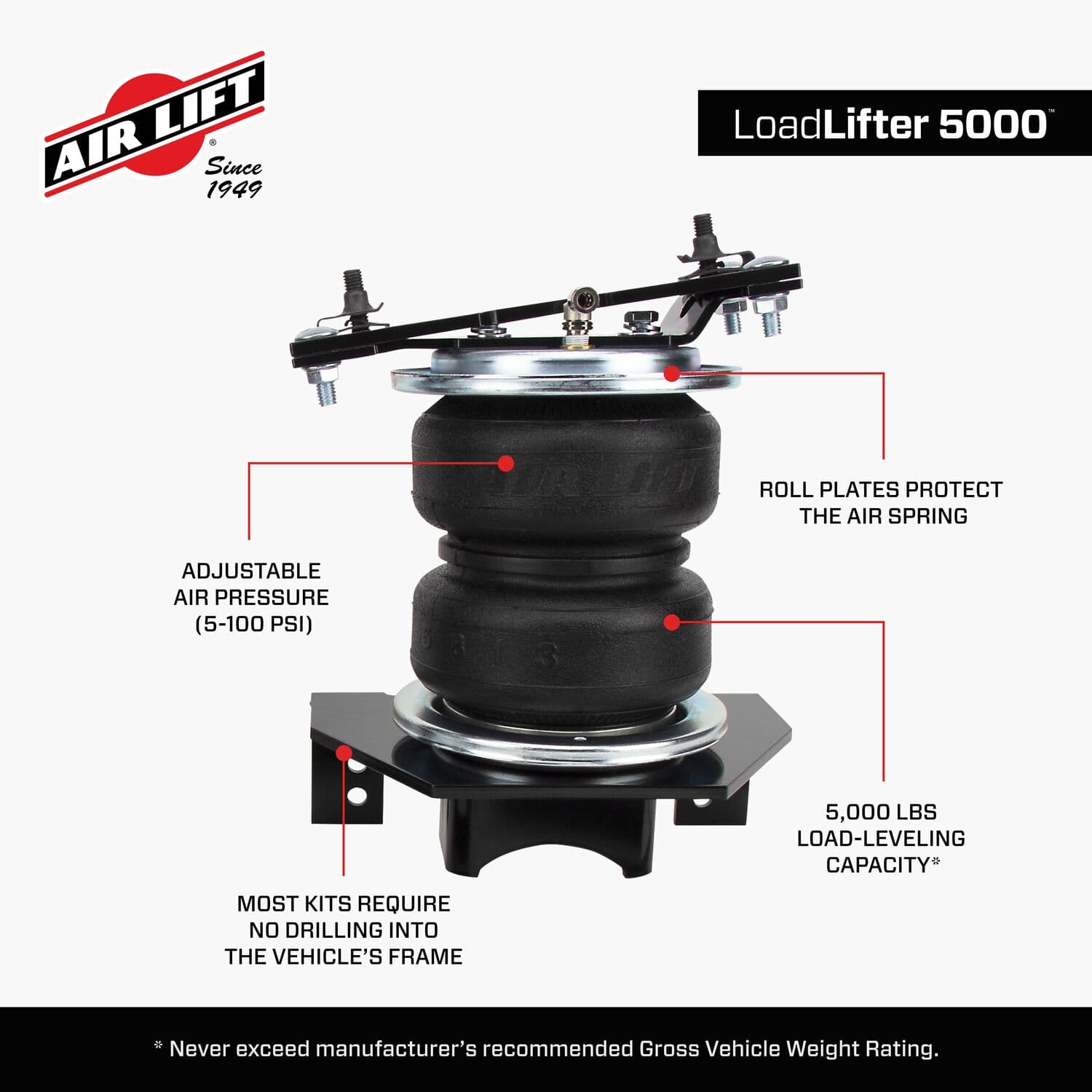

Air spring pressure is controlled through air line tubing that connects to the most convenient spot on your vehicle’s chassis. Our air springs are fully adjustable from 5 to 100 PSI.

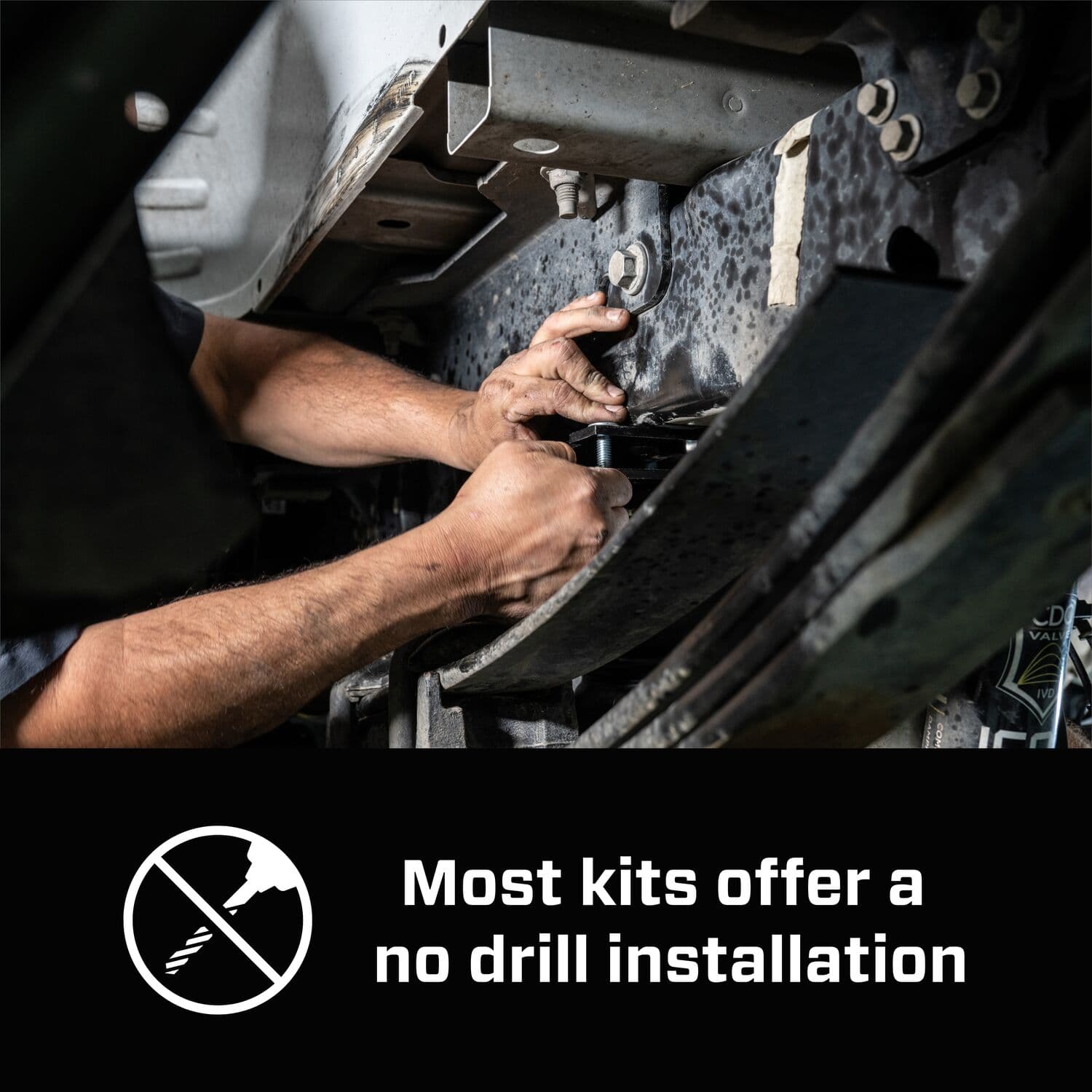

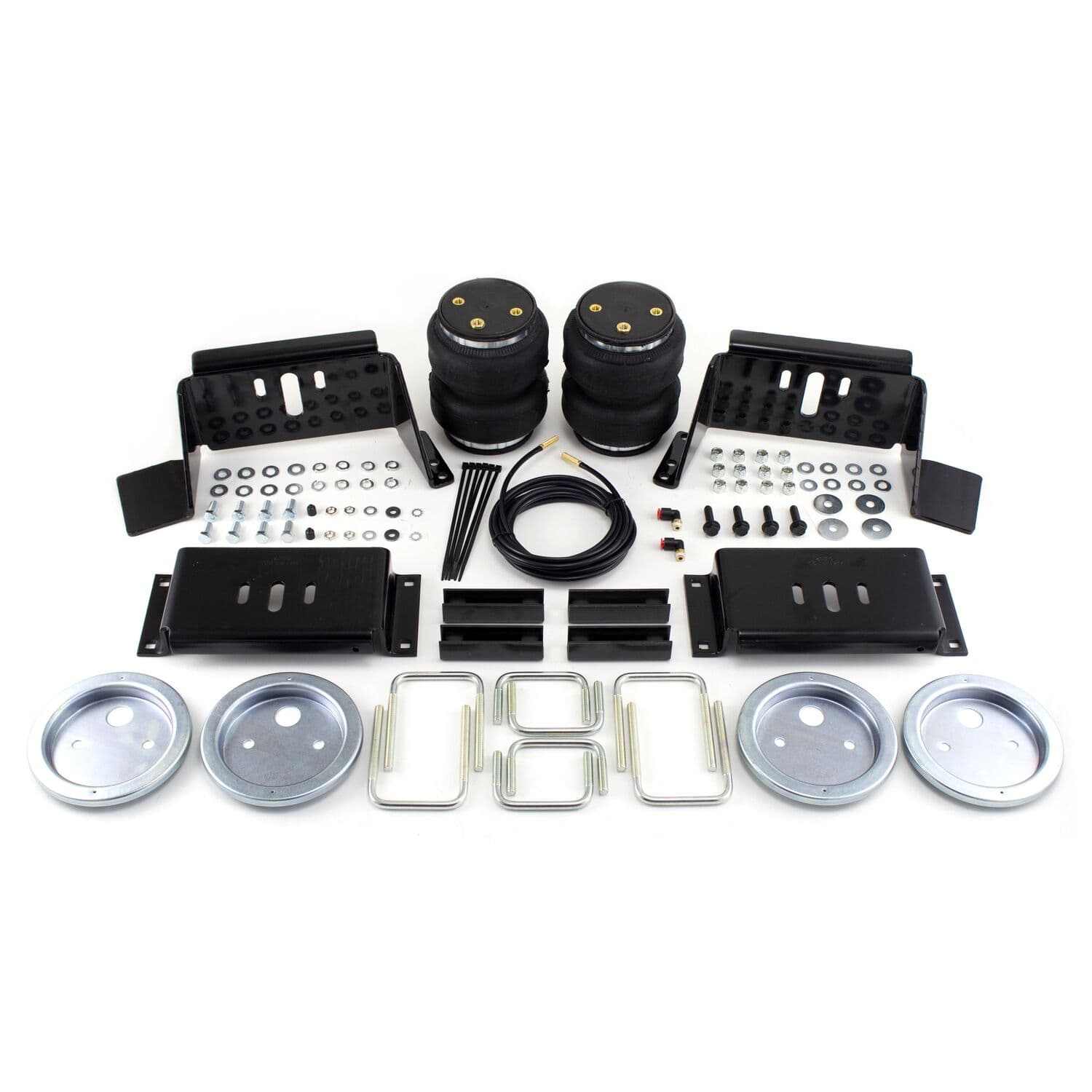

The kit includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware you need for installation. LoadLifter 5000 air spring kits are engineered to be installed in under 2 hours and include a fully illustrated, user-friendly instruction manual. You can install them yourself or one of our installers throughout the US and Canada can install the kit for you.

Add an Air Lift On-Board Air Compressor System for increased convenience

LoadLifter 5000 air springs can also inflate and deflate easily on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

LoadLifter 5000 kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

Additional Information

Shipping Weight 36.5 lbs
Shipping Box Dimensions 16.5 x 12.5 x 9.75 in
Installation Manual Download Installation Manual
Warranty

Lifetime Limited

Installation Time

2 Hours

Application Type

Rear Kit

Replacement Air Spring

50201

Mount Location

Side-frame

Product Videos

Videos

  • Why Air? Why Air Lift?

  • LoadLifter 5000 Installation

  • On-Board Air Compressor Systems

Compatible Vehicles

This Part Is Compatible With These Vehicles

(Scroll horizontally to view all information within the table.)

YearMakeModelDriveIn-Bed HitchSub ModelSuspensionGross Vehicle Weight (GVW)
2004FORDF-250 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2004FORDF-250 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2004FORDF-350 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2004FORDF-350 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2003FORDF-250 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2003FORDF-250 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2003FORDF-350 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2003FORDF-350 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2002FORDF-250 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2002FORDF-250 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2002FORDF-350 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2002FORDF-350 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2001FORDF-250 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2001FORDF-250 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2001FORDF-350 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2001FORDF-350 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2000FORDF-250 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2000FORDF-250 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
2000FORDF-350 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
2000FORDF-350 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
1999FORDF-250 PICKUPBASE MODEL
1999FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1999FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1999FORDF-250 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
1999FORDF-250 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
1999FORDF-350 SUPER DUTY PICKUP4 Wheel DriveReese 5th Wheel Hitch
1999FORDF-350 SUPER DUTY PICKUPRear Wheel DriveReese 5th Wheel Hitch
1998FORDF-250 PICKUPBASE MODEL
1998FORDF-250 PICKUP4 Wheel DriveSUPER CABWith Heavy Duty Suspension
1998FORDF-250 PICKUPRear Wheel DriveSUPER CABWith Heavy Duty Suspension
1997FORDF-250 PICKUP4 Wheel DriveNEW BODYWith Heavy Duty Suspension
1997FORDF-250 PICKUPRear Wheel DriveNEW BODYWith Heavy Duty Suspension
1997FORDF-250 PICKUP4 Wheel DriveNEW BODY SUPER CABWith Heavy Duty Suspension
1997FORDF-250 PICKUPRear Wheel DriveNEW BODY SUPER CABWith Heavy Duty Suspension
1997FORDF-250 PICKUP4 Wheel DriveOLD BODYOver 8500 lbs. GVWR
1997FORDF-250 PICKUPRear Wheel DriveOLD BODYOver 8500 lbs. GVWR
1997FORDF-250 PICKUP4 Wheel DriveOLD BODY SUPER CABOver 8500 lbs. GVWR
1997FORDF-250 PICKUPRear Wheel DriveOLD BODY SUPER CABOver 8500 lbs. GVWR
1997FORDF-350 PICKUPBASE MODEL
1997FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1997FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1996FORDF-250 PICKUPBASE MODEL
1996FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1996FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1996FORDF-350 PICKUPBASE MODEL
1996FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1996FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1995FORDF-250 PICKUPBASE MODEL
1995FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1995FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1995FORDF-350 PICKUPBASE MODEL
1995FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1995FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1994FORDF-250 PICKUPBASE MODEL
1994FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1994FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1994FORDF-350 PICKUPBASE MODEL
1994FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1994FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1993FORDF-250 PICKUPBASE MODEL
1993FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1993FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1993FORDF-350 PICKUPBASE MODEL
1993FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1993FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1992FORDF-250 PICKUPBASE MODEL
1992FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1992FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1992FORDF-350 PICKUPBASE MODEL
1992FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1992FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1991FORDF-250 PICKUPBASE MODEL
1991FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1991FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1991FORDF-350 PICKUPBASE MODEL
1991FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1991FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1990FORDF-250 PICKUPBASE MODEL
1990FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1990FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1990FORDF-350 PICKUPBASE MODEL
1990FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1990FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1989FORDF-250 PICKUPBASE MODEL
1989FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1989FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1989FORDF-350 PICKUPBASE MODEL
1989FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1989FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1988FORDF-250 PICKUPBASE MODEL
1988FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1988FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1988FORDF-350 PICKUPBASE MODEL
1988FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1988FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1987FORDF-250 PICKUPBASE MODEL
1987FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1987FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1987FORDF-350 PICKUP
1986FORDF-250 PICKUPBASE MODEL
1986FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1986FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1986FORDF-350 PICKUP
1985FORDF-250 PICKUPBASE MODEL
1985FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1985FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1985FORDF-350 PICKUP
1984FORDF-250 PICKUPBASE MODEL
1984FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1984FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1984FORDF-350 PICKUP
1983FORDF-250 PICKUPBASE MODEL
1983FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1983FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1983FORDF-350 PICKUP
1982FORDF-250 PICKUPBASE MODEL
1982FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1982FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1982FORDF-350 PICKUP
1981FORDF-250 PICKUPBASE MODEL
1981FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1981FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1981FORDF-350 PICKUP
1980FORDF-250 PICKUPBASE MODEL
1980FORDF-250 PICKUP4 Wheel DriveSUPER CAB
1980FORDF-250 PICKUPRear Wheel DriveSUPER CAB
1980FORDF-350 PICKUPBASE MODEL
1980FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1980FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1979FORDF-250 PICKUPBASE MODEL
1979FORDF-250 PICKUP4 Wheel DriveSUPER CABWith Heavy Duty Suspension
1979FORDF-250 PICKUPRear Wheel DriveSUPER CABWith Heavy Duty Suspension
1979FORDF-350 PICKUPBASE MODEL
1979FORDF-350 PICKUP4 Wheel DriveSUPER CAB
1979FORDF-350 PICKUPRear Wheel DriveSUPER CAB
1978FORDF-250 PICKUPBASE MODEL
1978FORDF-250 PICKUP4 Wheel DriveSUPER CABWith Heavy Duty Suspension
1978FORDF-250 PICKUPRear Wheel DriveSUPER CABWith Heavy Duty Suspension
1978FORDF-350 PICKUPBASE MODEL
1978FORDF-350 PICKUPSUPER CAB
1977FORDF-250 PICKUPBASE MODEL
1977FORDF-250 PICKUP4 Wheel DriveSUPER CABWith Heavy Duty Suspension
1977FORDF-250 PICKUPRear Wheel DriveSUPER CABWith Heavy Duty Suspension
1977FORDF-350 PICKUPBASE MODEL
1977FORDF-350 PICKUPSUPER CAB
1976FORDF-250 PICKUP
1976FORDF-350 PICKUP
1975FORDF-250 PICKUP
1975FORDF-350 PICKUP
1974FORDF-250 PICKUP
1974FORDF-350 PICKUP
1973FORDF-250 PICKUP
1973FORDF-350 PICKUP
1972FORDF-250 PICKUP
1972FORDF-350 PICKUP
1971FORDF-250 PICKUP
1971FORDF-350 PICKUP
