Select your vehicle to see if this part fits:

LoadLifter 5000

57205_v0
57205_v0
Part Number: 57205
  • Up to 5,000 lbs. of load-leveling capacity*
  • Eliminates squat, trailer sway, rough ride and bottoming out
  • Fits many 3/4 ton and 1 ton pickups and vans

Only fits passenger van with a boxed frame.

Product Overview

LoadLifter 5000 kits are Air Lift’s heaviest-rated air spring kits, specifically engineered for hauling or towing heavy loads. LoadLifter 5000 air springs are designed to fit popular vehicles like 3/4 ton and one-ton pickup trucks, motor homes, commercial trucks and other severe uses. LoadLifter 5000 air springs provide up to 5,000 pounds of leveling capacity* for support of your heaviest loads.

Tow and Haul with Safety & Comfort

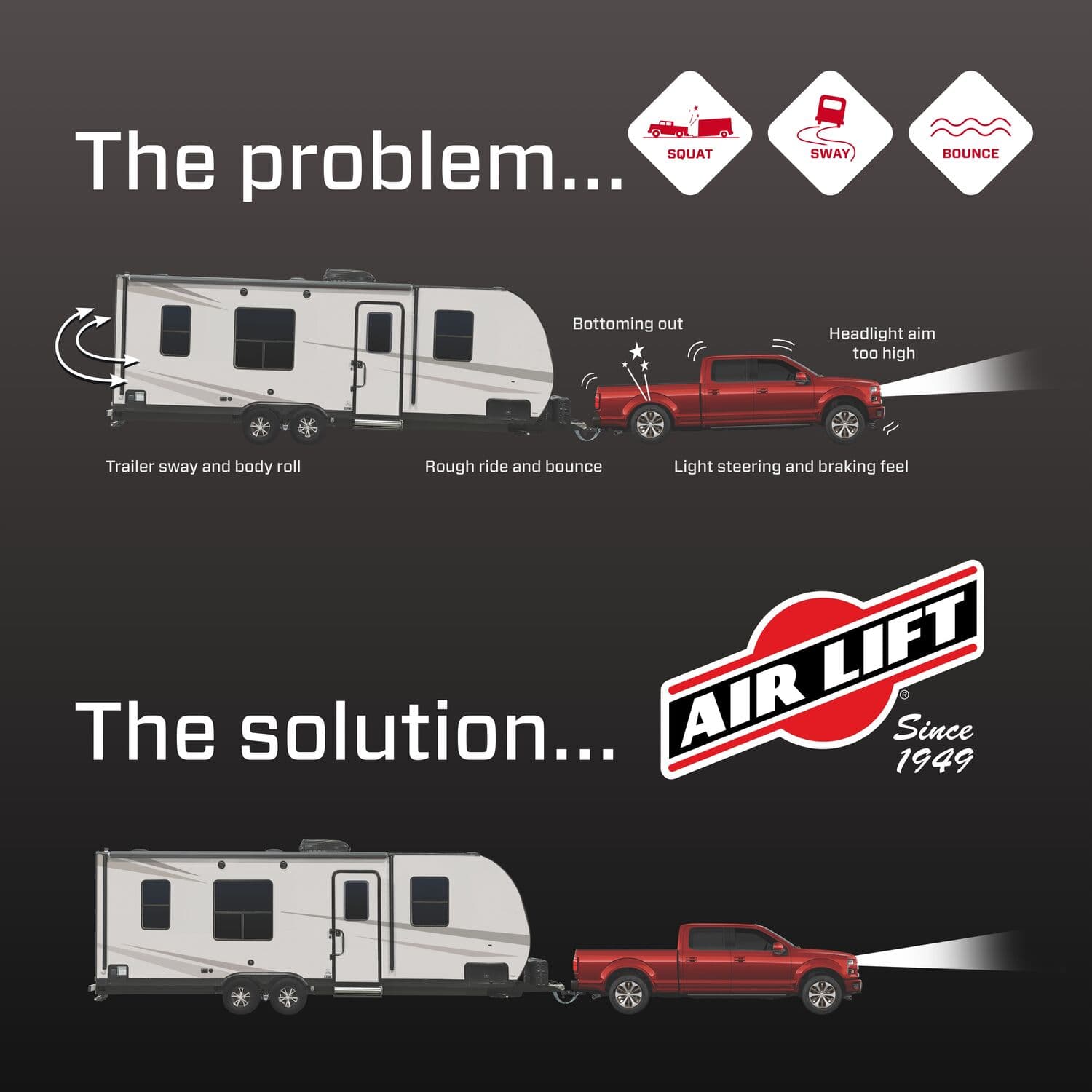

Air Lift adjustable air springs work with your existing suspension to give your vehicle more leveling support when you need it, so your vehicle is always level and stable. Proper weight distribution to all tires means more safety and a more comfortable ride as well. This results in:

Improved braking and steering: when all four tires are firmly on the ground, braking time and steering are both improved.

Less sway: Air springs increase spring rate and vastly improve vehicle stability.

Less bottoming out: Air springs provide adjustable load support to help prevent bottoming out on rough roads.

Headlight aim: Only level and stable vehicles provide safe and proper headlight aiming.

Less porpoising: Even heavy pickups which don’t squat when loaded can begin to “porpoise” vertically when towing heavy trailers. Adjustable air springs dramatically reduce this problem for a safer, more comfortable ride.

More even tire wear: when weight is evenly distributed to all four tires, tires wear more evenly.

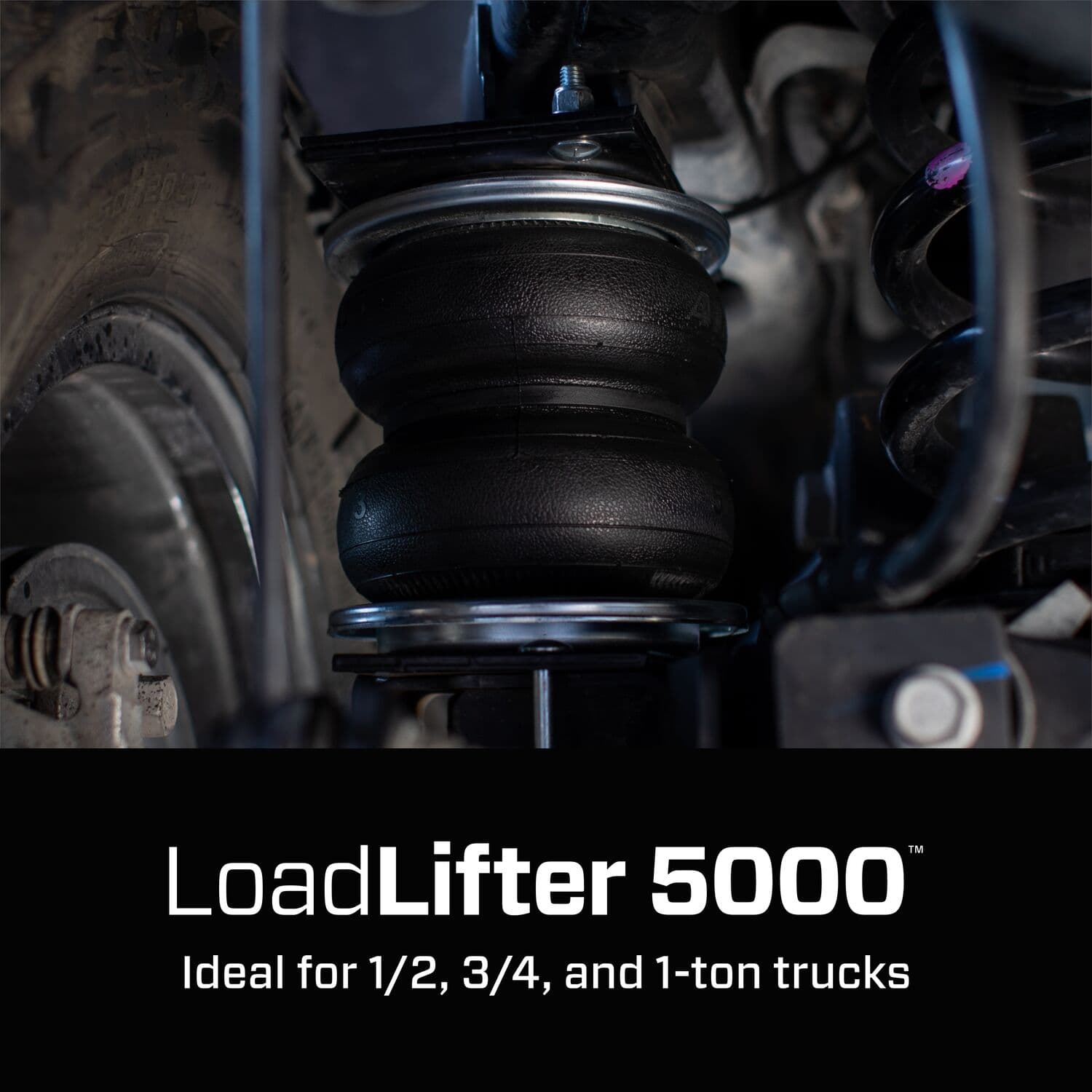

LoadLifter 5000 air springs fit easily between the frame and the axle to provide suspension support. To operate, just add air to the air springs if you are carrying a heavy load to make sure that your vehicle remains level and stable. Then, deflate when riding empty.

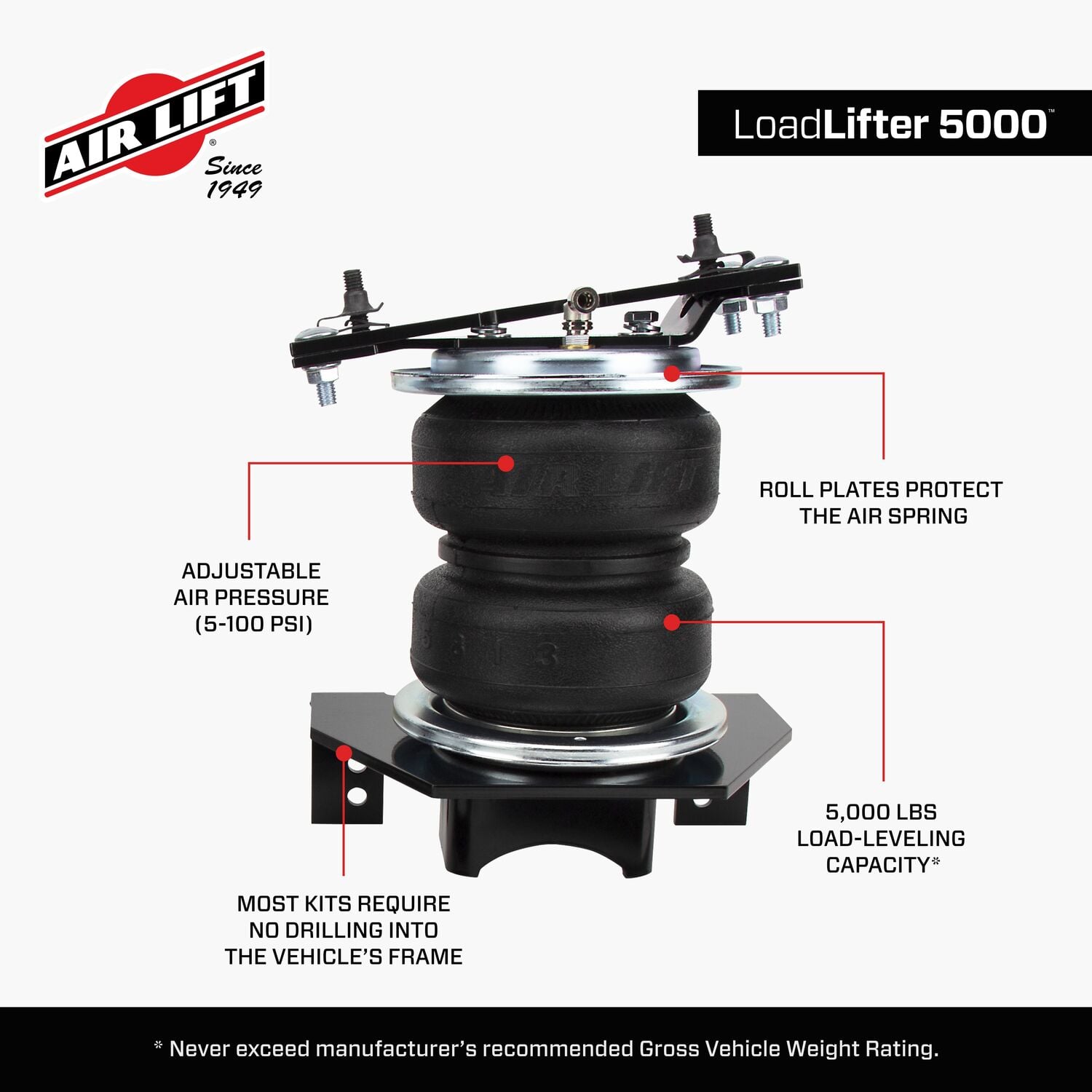

Air spring pressure is controlled through air line tubing that connects to the most convenient spot on your vehicle’s chassis. Our air springs are fully adjustable from 5 to 100 PSI.

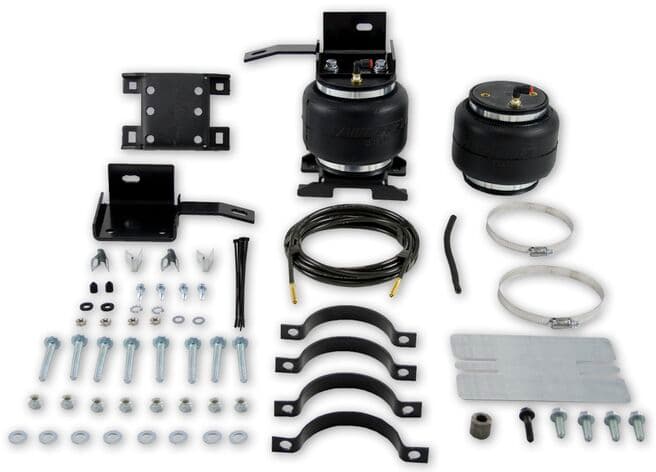

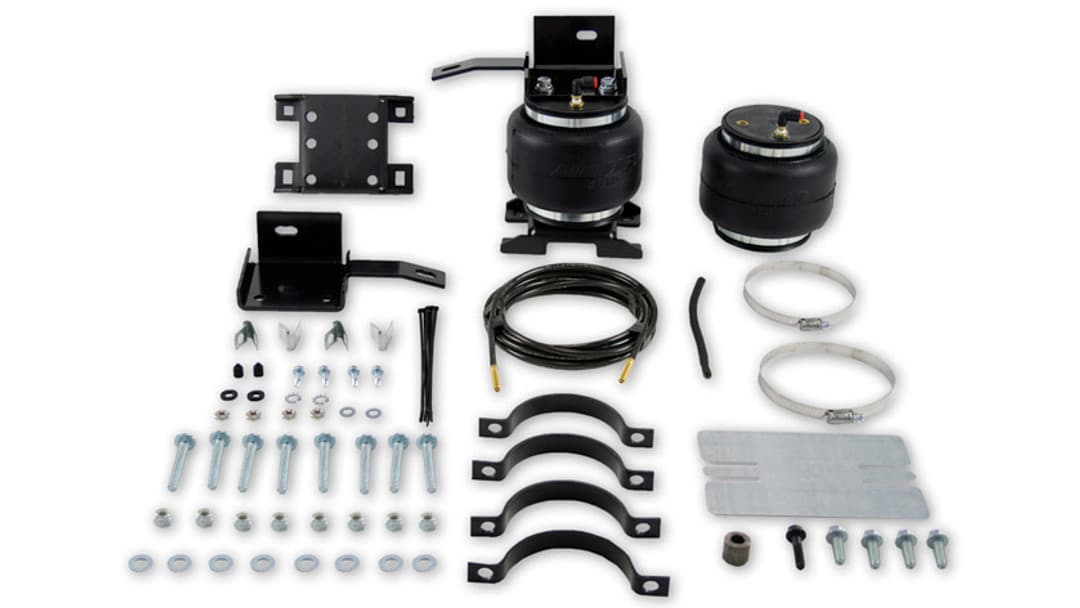

The kit includes 2 air springs, brackets, air lines, Schrader valve and all of the hardware you need for installation. LoadLifter 5000 air spring kits are engineered to be installed in under 2 hours and include a fully illustrated, user-friendly instruction manual. You can install them yourself or one of our installers throughout the US and Canada can install the kit for you.

Add an Air Lift On-Board Air Compressor System for increased convenience

LoadLifter 5000 air springs can also inflate and deflate easily on-the-go. For convenient air spring control at the touch of a button, add an Air Lift On-Board Air Compressor System. These systems are great for changes in load, weather or road conditions. Air Lift offers wireless models as well as models that mount in the cab. Air Lift compressor systems are the most advanced in the industry and work with all brands of air springs.

Best Warranty in the Business

All Air Lift adjustable air springs are backed by the best warranty in the industry and we are the only company that provides a Lifetime Warranty on air springs and hardware. We also offer a 60-day “No Questions Asked” Money Back Guarantee. If you’re not happy with your Air Lift air springs, simply return the kit to the retailer or installer where you purchased it to receive a full refund.

Higher Standards, Higher Quality

LoadLifter 5000 kits are quality tested in our ISO 9001:2008 certified facility. ISO 9001:2008 standards ensure Air Lift products meet the highest level of safety and comfort.

* Never exceed manufacturer’s recommended Gross Vehicle Weight Rating.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Technical Specifications

Additional Information

Shipping Weight 15.6 lbs
Shipping Box Dimensions 9.5 x 14.5 x 11.25 in
Installation Manual Download Installation Manual

Product Videos

Videos

  • Why Air? Why Air Lift?

  • LoadLifter 5000 Installation

  • On-Board Air Compressor Systems

Compatible Vehicles

This Part Is Compatible With These Vehicles

(Scroll horizontally to view all information within the table.)

YearMakeModelSub Model
2017CHEVROLETEXPRESS 2500
2017CHEVROLETEXPRESS 3500
2016CHEVROLETEXPRESS 2500
2016CHEVROLETEXPRESS 3500
2015CHEVROLETEXPRESS 2500
2015CHEVROLETEXPRESS 3500
2014CHEVROLETEXPRESS 2500
2014CHEVROLETEXPRESS 3500
2013CHEVROLETEXPRESS 2500
2013CHEVROLETEXPRESS 3500
2012CHEVROLETEXPRESS 2500
2012CHEVROLETEXPRESS 3500 PASSENGER VAN
2011CHEVROLETEXPRESS 2500
2011CHEVROLETEXPRESS 3500 PASSENGER VAN
2010CHEVROLETEXPRESS 2500
2010CHEVROLETEXPRESS 3500 PASSENGER VAN
2009CHEVROLETEXPRESS 2500
2009CHEVROLETEXPRESS 3500 PASSENGER VAN
2008CHEVROLETEXPRESS 2500
2008CHEVROLETEXPRESS 3500 PASSENGER VAN
2007CHEVROLETEXPRESS 2500
2007CHEVROLETEXPRESS 3500 PASSENGER VAN
2006CHEVROLETEXPRESS 2500
2006CHEVROLETEXPRESS 3500 PASSENGER VAN
2005CHEVROLETEXPRESS 2500
2005CHEVROLETEXPRESS 3500 PASSENGER VAN
2004CHEVROLETEXPRESS 2500
2004CHEVROLETEXPRESS 3500 PASSENGER VAN
2003CHEVROLETEXPRESS 2500
2003CHEVROLETEXPRESS 3500 PASSENGER VAN
2002CHEVROLETEXPRESS 2500
2002CHEVROLETEXPRESS 3500 PASSENGER VAN
2001CHEVROLETEXPRESS 2500
2001CHEVROLETEXPRESS 3500 PASSENGER VAN
2000CHEVROLETEXPRESS 2500
2000CHEVROLETEXPRESS 3500 PASSENGER VAN
1999CHEVROLETEXPRESS 2500
1999CHEVROLETEXPRESS 3500 PASSENGER VAN
1998CHEVROLETEXPRESS 2500
1998CHEVROLETEXPRESS 3500 PASSENGER VAN
1997CHEVROLETEXPRESS 2500
1997CHEVROLETEXPRESS 3500
1996CHEVROLETEXPRESS 2500
1996CHEVROLETEXPRESS 3500
1996CHEVROLETG30 VANBASE MODEL
1996CHEVROLETG30 VANSPORTVAN
2017GMCSAVANA 2500
2017GMCSAVANA 3500
2016GMCSAVANA 2500
2016GMCSAVANA 3500
2015GMCSAVANA 2500
2015GMCSAVANA 3500
2014GMCSAVANA 2500
2014GMCSAVANA 3500
2013GMCSAVANA 2500
2013GMCSAVANA 3500
2012GMCSAVANA 2500
2012GMCSAVANA 3500
2011GMCSAVANA 2500
2011GMCSAVANA 3500
2010GMCSAVANA 2500
2010GMCSAVANA 3500
2009GMCSAVANA 2500
2009GMCSAVANA 3500
2008GMCSAVANA 2500
2008GMCSAVANA 3500
2007GMCSAVANA 2500
2007GMCSAVANA 3500
2006GMCSAVANA 2500
2006GMCSAVANA 3500
2005GMCSAVANA 2500
2005GMCSAVANA 3500
2004GMCSAVANA 2500
2004GMCSAVANA 3500
2003GMCSAVANA 2500
2003GMCSAVANA 3500
2002GMCSAVANA 2500
2002GMCSAVANA 3500
2001GMCSAVANA 2500
2001GMCSAVANA 3500
2000GMCSAVANA 2500
2000GMCSAVANA 3500
1999GMCSAVANA 2500
1999GMCSAVANA 3500
1998GMCSAVANA 2500
1998GMCSAVANA 3500
1997GMCSAVANA 2500
1997GMCSAVANA 3500
1996GMCG3500 VANBASE MODEL
1996GMCG3500 VANRALLY
1996GMCG3500 VANSPECIAL
1996GMCG3500 VANVANDURA
1996GMCSAVANA 2500
1996GMCSAVANA 3500
